VAS 882 005 | Metal Edge Cutter MEC600 Pneumatic | 932247

Email us or live chat (bottom right) for pricing.

The VAS 882 005 Milling Edge Cutter was developed for cutting beaded edges, laser weld seams and for process-reliable and precise car body outer skin removal.

Features:
  • for reliable and precise body outer skin removal
  • for cutting laser welds, flanged edges, surfaces and contours
  • suitable for steel, ultra-high-strength steels and aluminum
  • milling depths variably adjustable
  • no damage to the underlying sheet metal structure
  • variable angular positions guarantee universal application
  • innovative carbide special milling cutters
  • high application security
  • no sparks - in connection with the use of cutting oil
  • no pre-heat treatment on the body is necessary
  • quick tool change

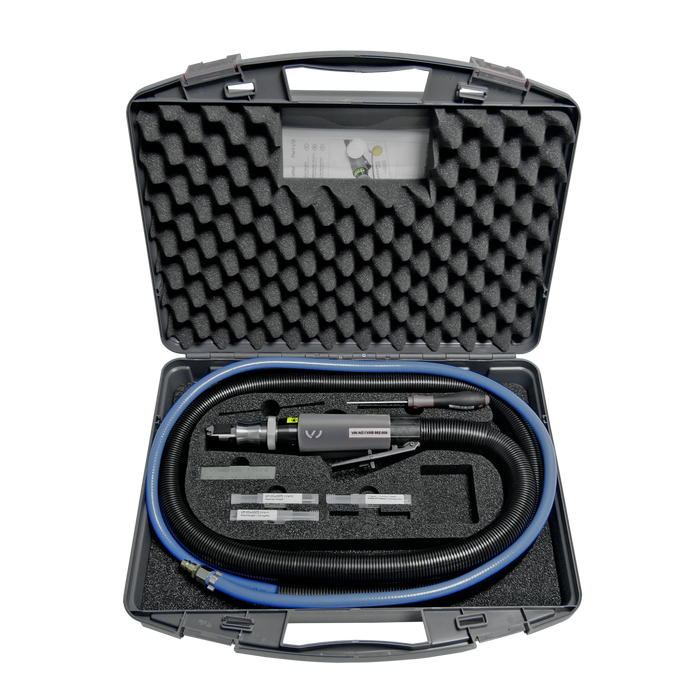

Delivery Contents:
  • 1x milling pneumatic device
  • 1x attachment for edge milling device
  • 1x protective cover
  • 1x flat head milling cutter for ALU, 6 mm
  • 1x flat head cutter for steel, 6 mm
  • 1x round head cutter for steel, 6 mm
  • 1x setting gauge
  • 1x pin wrench
  • 1x instruction manual
  • 1x USB stick with 37 languages (operating instructions)
Technical Data:
  • Rotational speed: 20.000 rpm.
  • Packing unit: 1 pc.
  • Diameter: 6 mm (collet)
  • Working pressure: 6.3 bar
  • Length: 3.1 m (Hose)
  • Output: 600 W
  • Working temperature: 0°C-40°C
  • Vibration: 3.6 m/s²
  • Air consumption: 1.3 m³/min.
  • Noise level: 77 dB
  • Dimensions: 265 x 53 mm
