Wieländer+Schill C-Arm No. 1 Standard 150 × 70 mm NexGen | 474001NG
Product Description

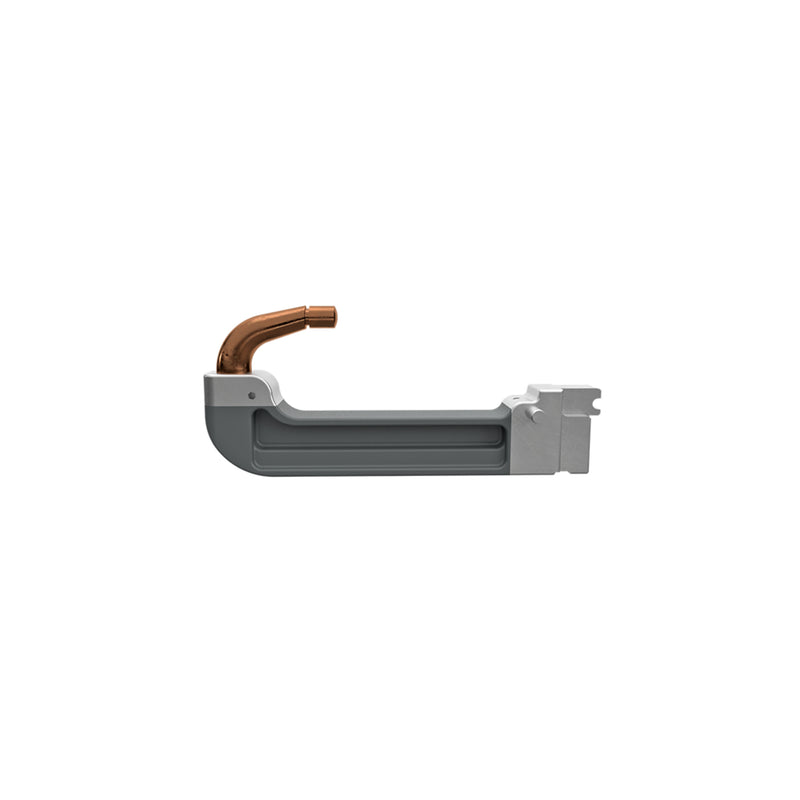

The Wieländer+Schill C-Arm No. 1 (474001NG) is a water-cooled electrode arm designed for use with the InvertaSpot NexGen resistance spot welding system. With a 150 × 70 mm working window, it provides controlled access and consistent electrode pressure for standard spot welding applications on automotive body panels.
In collision repair workflows, this C-arm is used for OEM-style resistance spot welding on steel panels, reinforcements, and structural components. As a core arm configuration, it supports daily welding tasks in Canadian collision repair shops, delivering stability and repeatable weld quality in professional shop environments.
Key Features
- 150 × 70 mm working window for standard panel access and welding reach
- Water-cooled design maintains consistent performance under high load conditions
- Designed for InvertaSpot NexGen resistance spot welding systems
- Includes C-shaped electrode with Ø16 mm standard electrode cap
- Built for high-load applications with stable, repeatable weld results
- Compatible with multiple electrode configurations for different repair scenarios
Ideal For
- Collision repair technicians performing OEM spot welding on steel panels
- Body shops across Canada using resistance spot welding systems
- Structural and panel replacement workflows requiring factory-style welds
- Professional shop environments focused on weld consistency and access control
Common Questions:
Q: What is a C-arm used for in spot welding?
A: It holds the electrodes and determines the reach and access for resistance spot welding on vehicle panels.
Q: What makes the 150 × 70 mm size important?
A: It provides a balanced working range for standard panel access without sacrificing control or stability.
Q: Is this compatible with all spot welders?
A: No, it is specifically designed for Wieländer+Schill InvertaSpot NexGen resistance spot welder and compatible electrode setups.
