Optrel Panoramaxx CLT Black PAPR Welding Helmet with e3000X (ATEX) | 4550.580
Delivery time
Product Overview

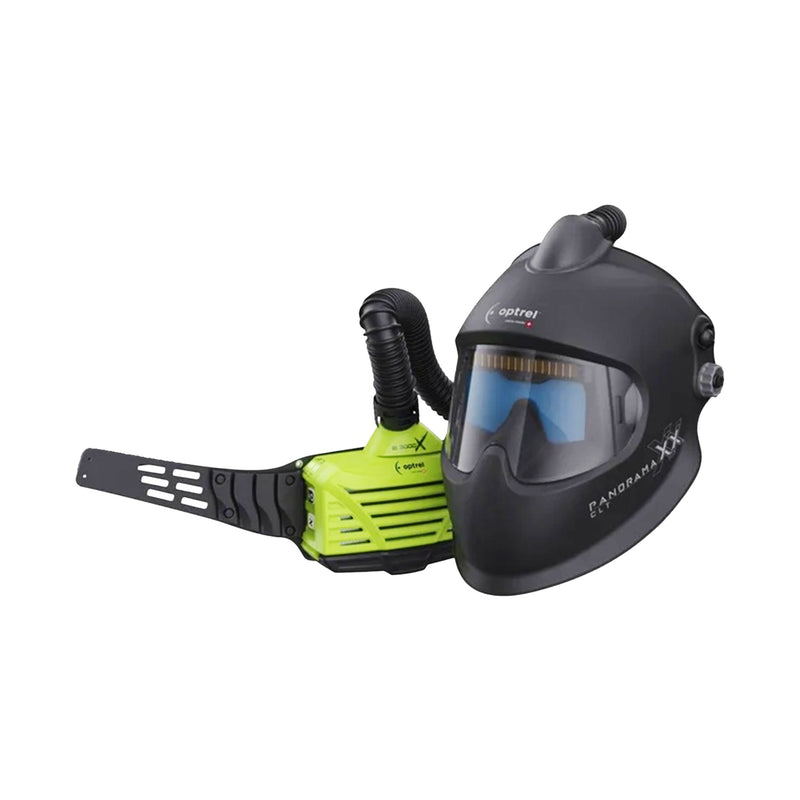

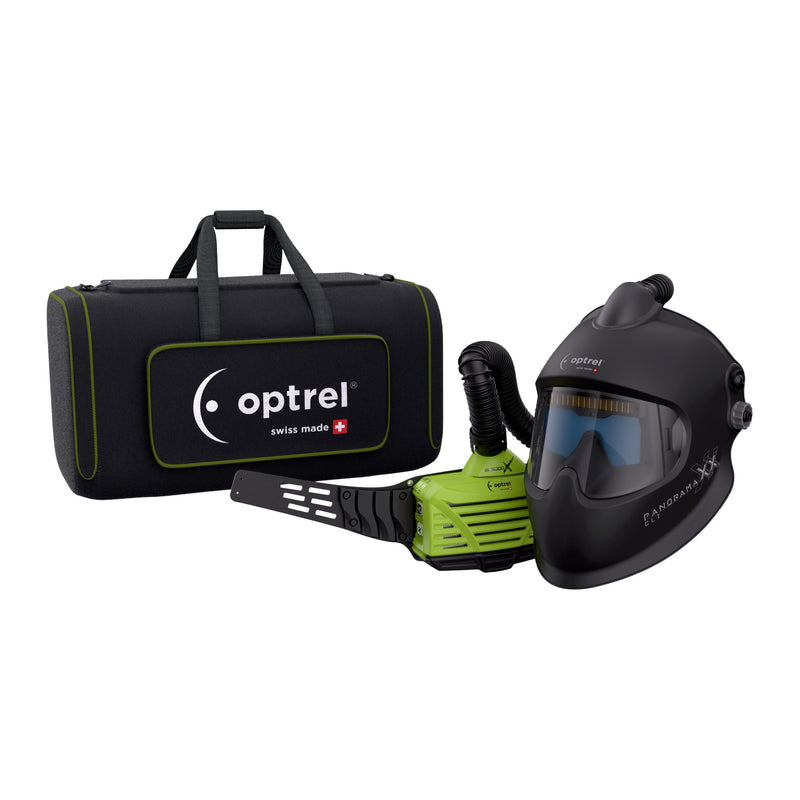

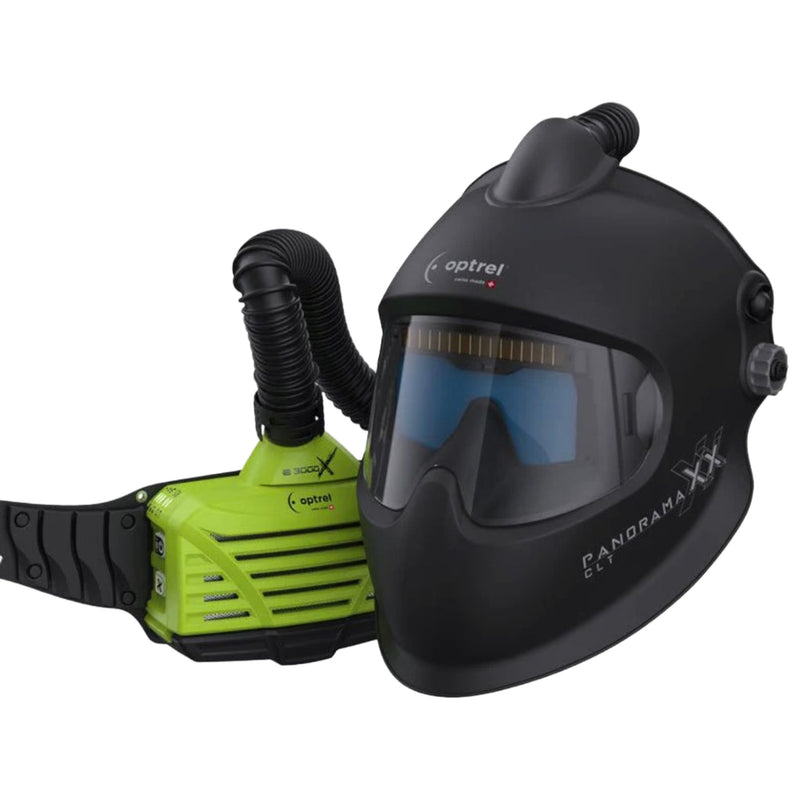

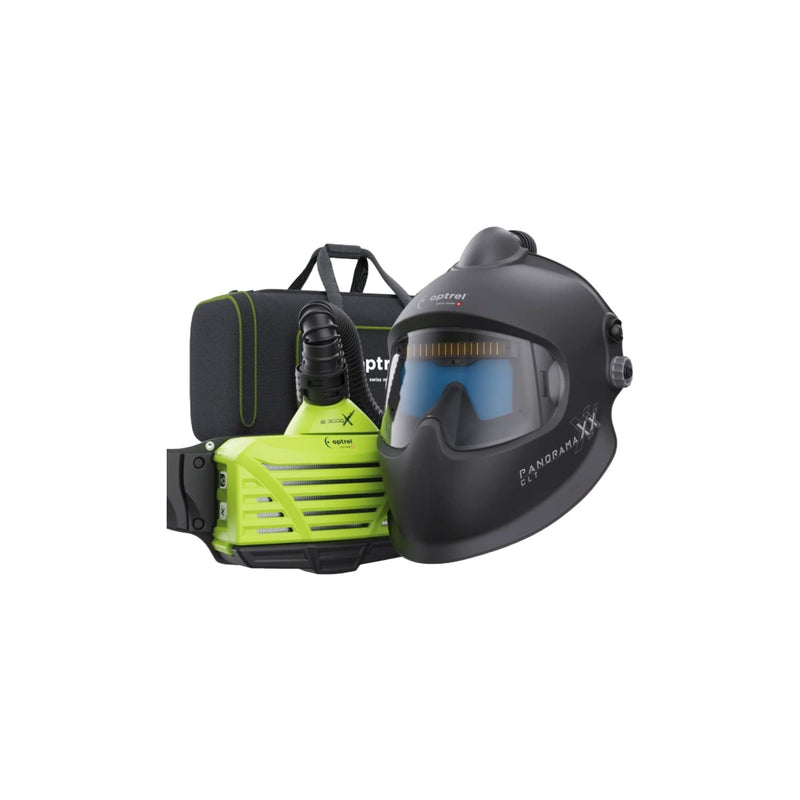

The Optrel Panoramaxx CLT Black PAPR Welding Helmet (Ready-to-Weld Package) is a top-tier, technologically advanced respiratory and vision protection system designed for professional welders and fabricators. Combining the groundbreaking Panoramaxx CLT (Crystal Lens Technology) helmet with the robust e3000X ATEX Powered Air Purifying Respirator (PAPR), this kit delivers an unparalleled 99.8% filtration of harmful welding fumes, smoke, aerosols, and dust.

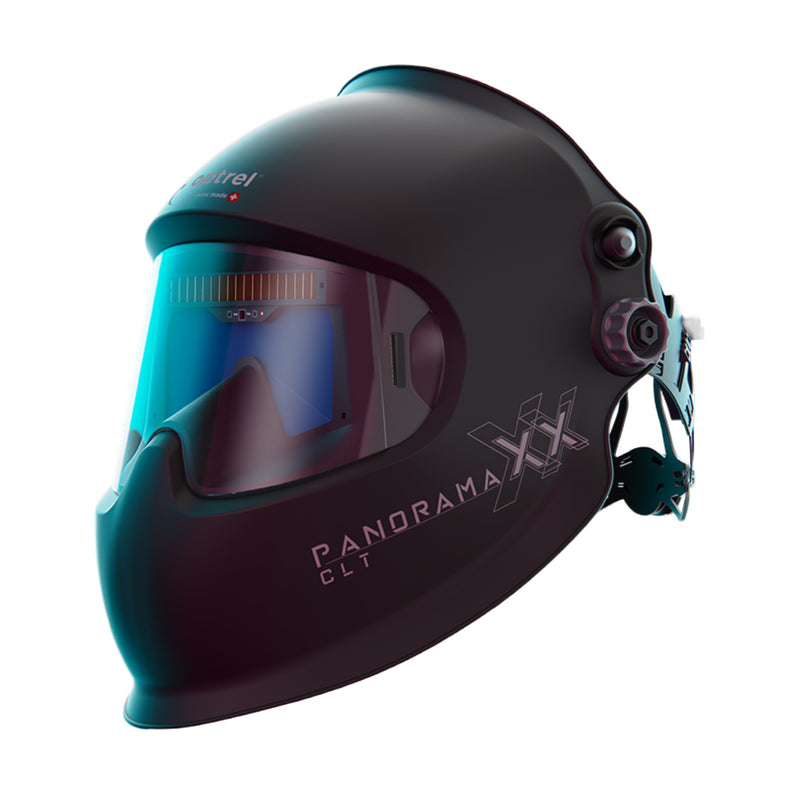

What truly sets the Panoramaxx CLT apart is its massive, panoramic field of view up to 600% larger than standard helmets. This is achieved through a unique nose cut-out that allows the auto-darkening filter (ADF) to sit much closer to the eyes. Coupled with a 2.0 light state that rivals looking through clear window glass, this helmet virtually eliminates the need to constantly flip your hood up and down. The included e3000X ATEX blower system provides highly customizable, TH3-certified respiratory protection (the highest safety class), ensuring welders stay cool, comfortable, and safe during long, heavy-duty shifts.
Key Features
- Crystal Lens Technology (CLT 2.0): Provides a remarkably bright 2.0 shade light state. When inactive or in grind mode, the true-colour view is incredibly crisp and clear, allowing for seamless transitions between setup, welding, and grinding without removing the helmet.
- Panoramic Field of Vision: The distinctive nose cut-out brings the lens closer to the face, expanding the visual field by up to 6 times compared to industry-standard 100x50mm cassettes.
- ShadeTronic® Autopilot: Equipped with a 5-sensor array that continuously measures the arc intensity and automatically adjusts the shade level (from 4 to 12) in real-time. This allows you to switch between TIG, MIG, and Stick without manually adjusting your settings.
- FadeTronic® (Twilight Technology): Prevents sudden eye shock by smoothly and gradually transitioning the lens from the dark state back to the light state after the weld is completed, significantly reducing eye fatigue over a full shift.

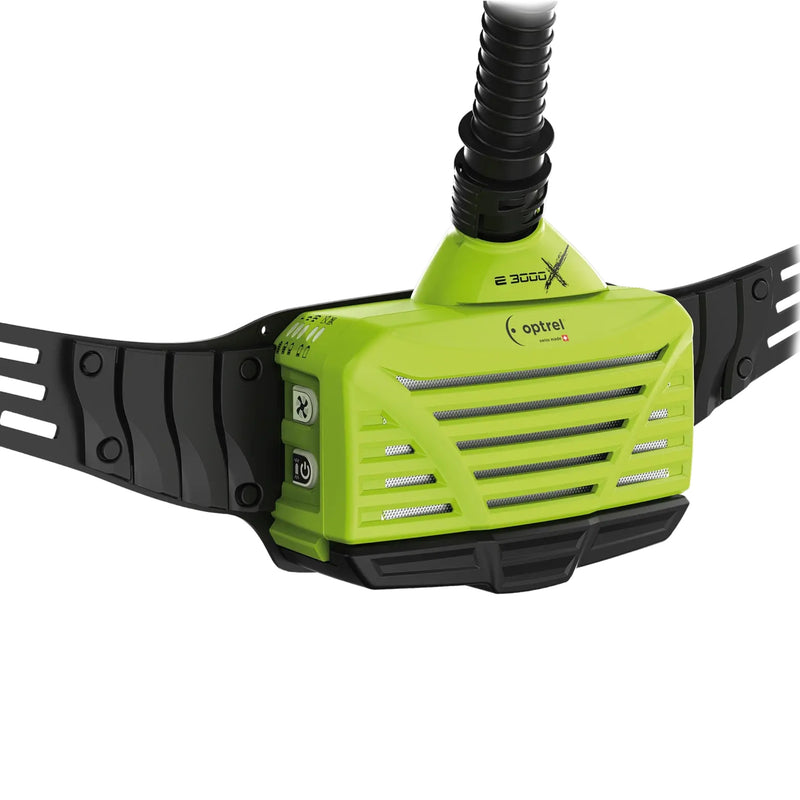

- e3000X ATEX PAPR System: Delivers TH3-level protection by filtering out 99.8% of harmful airborne particulates. The ATEX rating means it is certified for use in potentially explosive environments (Zone 2 and 22). It features an 18-hour battery life and three adjustable airflow settings.
- IsoFit® Headgear: A fully customizable, ergonomic headgear system featuring multiple adjustment points and washable pads, designed to perfectly distribute the helmet's weight for all-day comfort.
Technical Specifications
| Property | Specification |
| Brand / Manufacturer | Optrel |
| Product Name | Panoramaxx CLT Black PAPR Package with e3000X ATEX |
| Part Number (SKU) | 4550.580 |
| Optical Class Rating | 1/1/1/2 (EN379) |
| Shade Range | Shade 2.0 (Light State) / Shade 4 to 12 (Active) |
| Arc Sensors | 5 Sensors |
| PAPR Filtration Class | TH3 (Filters 99.8% of particulates) |
| Airflow Settings (e3000X) | Level 1: 170 l/min / Level 2: 210 l/min / Level 3: 240 l/min |
| ATEX Certification | Zone 2 and 22 (II 3G Ex h IIB T5 Gc / II 3D Ex h IIIC T100°C Dc) |
| Helmet Power Source |
Solar cells + rechargeable Li-polymer battery (via Micro-USB) |
Ideal Use Cases & Applications
-
Heavy Industrial Welding: Ideal for welders working long shifts in shipbuilding, structural steel fabrication, or heavy equipment manufacturing where continuous protection from heavy fume plumes is mandatory.
-
Confined Space / Poor Ventilation: The TH3 PAPR system makes this the perfect choice when welding in tight spaces, tanks, or shops lacking adequate ambient fume extraction.
-
Multi-Process Fabrication: Because the ShadeTronic autopilot automatically adjusts the shade level, it is phenomenal for fabricators who constantly switch between low-amp TIG and high-amp MIG or Stick throughout the day.
- Hazardous Environments: The ATEX certification allows this specific e3000X unit to be used safely in facilities where explosive dusts or gases may be present (Zones 2 and 22).
Common Questions (FAQs)
Q: Can I wear prescription glasses with the Panoramaxx CLT?
A: Yes. Despite the unique nose cut-out bringing the lens closer to the face to maximize the panoramic view, Optrel engineered enough clearance to comfortably accommodate standard prescription safety glasses underneath the hood.
Q: Do I need to manually set the shade level?
A: No, you do not have to. While manual adjustments are possible, the helmet features Optrel's Autopilot (ShadeTronic), which uses five sensors to continuously read the brightness of the arc and instantly adapt the shade between levels 4 and 12.
ow long does the battery on the e3000X PAPR last?
A: The e3000X system includes a high-capacity battery designed to run for up to 18 hours on a single charge, easily getting you through a standard or extended shift without needing to swap batteries mid-weld.
Q: What does the ATEX certification mean?
A: ATEX certification means the e3000X blower unit is intrinsically safe and protected against creating sparks. It is certified for use in ATEX Zone 2 (gases/vapors) and Zone 22 (combustible dusts), which is often a strict requirement in petrochemical, mining, or agricultural facilities.
