Product Description

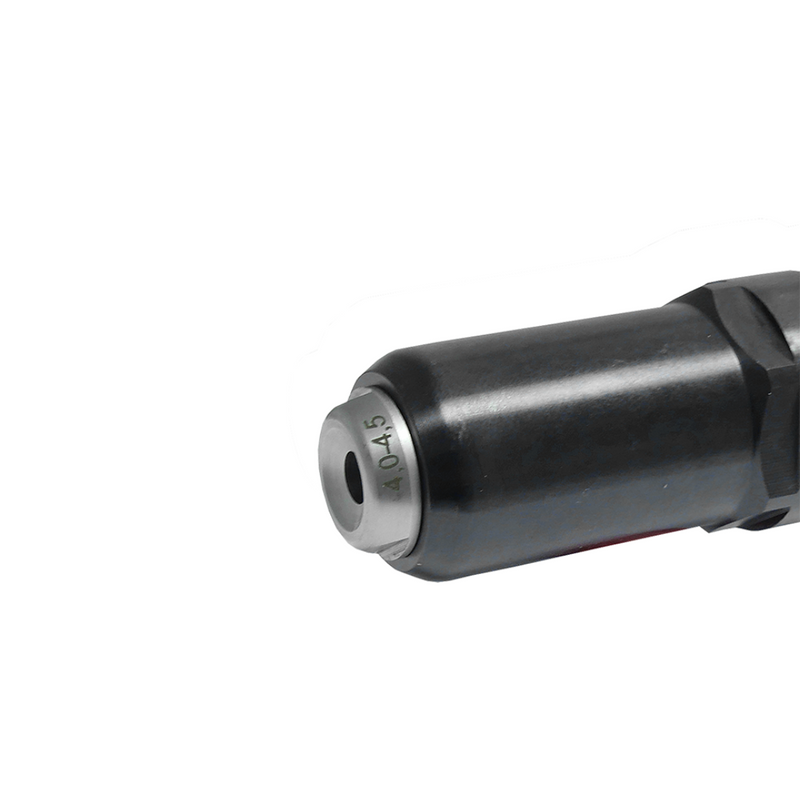

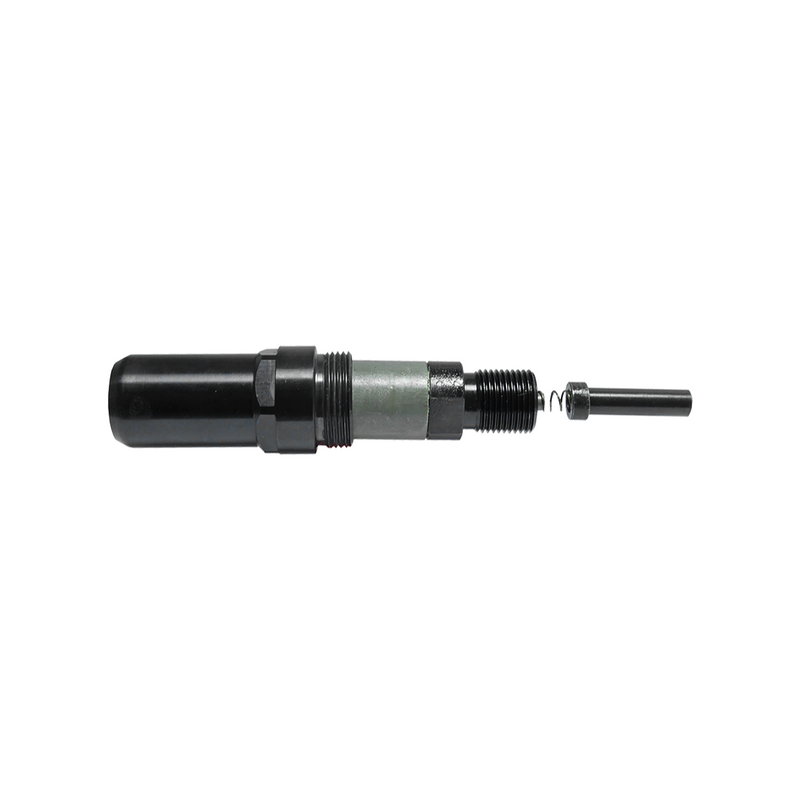

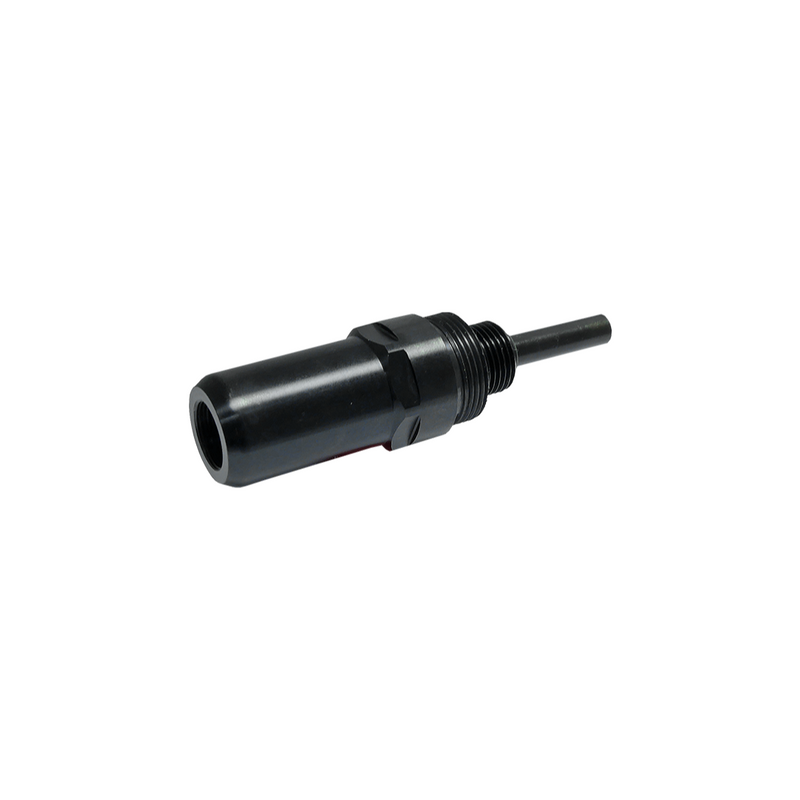

The Wieländer+Schill Welding Studs Pulling Adapter (SKU: 700138) is a specialized structural component engineered for the XPress modular riveting systems. Measuring 40 mm in length, this specific pulling adapter is designed to connect directly into the BR50 Blind Rivet Adapter, allowing technicians to efficiently handle, secure, and pull automotive welding studs ranging from 3.0 mm to 5.5 mm in diameter.  In advanced collision repair facilities, maintaining an adaptable toolset is critical for returning high-strength steel and aluminum panels to OEM specifications. By utilizing this adapter within the Wieländer+Schill XSeries ecosystem (such as the XPress 800 and Xpress 1000 Rivet Guns), body shops across Canada can convert their blind riveting modules into precision stud-pulling tools without the need for entirely separate equipment platforms. This modular efficiency helps significantly reduce cycle times on complex structural pulls.

Key Features

• Dedicated BR 50 Compatibility: Engineered to seamlessly integrate with the Wieländer+Schill BR 50 Blind Rivet Adapter, expanding the capability of the standard riveting tool.

• Precision Capacity: Safely accommodates automotive welding studs with a shaft diameter ranging between 3.0 mm and 5.5 mm.

• Compact 40 mm Profile: Features a 40 mm extension length, providing excellent accessibility and controlled pulling leverage in tight structural areas or complex vehicle geometries.

• Modular Versatility: Operates in conjunction with interchangeable mouthpieces (sold separately, such as the 3.0–4.0 mm or 4.0–5.0 mm inserts) to handle varying stud materials, including steel and aluminum.

• OEM-Level Build Quality: Forged to Wieländer+Schill's strict manufacturing standards to withstand the heavy pulling forces required during professional collision repair work.


Ideal For

• Certified Collision Facilities: Expanding the functionality of existing XPress 800 riveting systems to include precision stud pulling for structural repairs.

• Aluminum & High-Strength Steel Repairs: Managing stud-based dent extraction on modern vehicle architectures where maintaining controlled pulling force is critical to preventing panel tearing.

• Multi-Shop Operators (MSOs): Reducing equipment overhead by utilizing modular tool components that perform multiple repair functions out of a single tool case.

Common Questions

Q: What systems are compatible with this adapter?

A: This adapter (SKU: 700138) is specifically designed as a component for the BR 50 Blind Rivet Adapter, which is part of the Wieländer+Schill XSeries modular ecosystem, including the widely used XPress 800 tool.

Q: Do I need additional parts to hold the studs?

A: Yes. While this is the primary pulling adapter, you must pair it with the corresponding Wieländer+Schill mouthpiece (such as SKU: 703136 for 3.0–4.0 mm steel studs or SKU: 703138 for 4.0–5.0 mm steel studs) to securely grip the specific diameter and material of the welding stud you are pulling.

Q: Is it safe for pulling aluminum studs?

A: Yes, provided you are using the correct aluminum-specific mouthpiece inserted into this adapter. This ensures the softer aluminum stud does not slip or shear off under heavy pulling tension.
