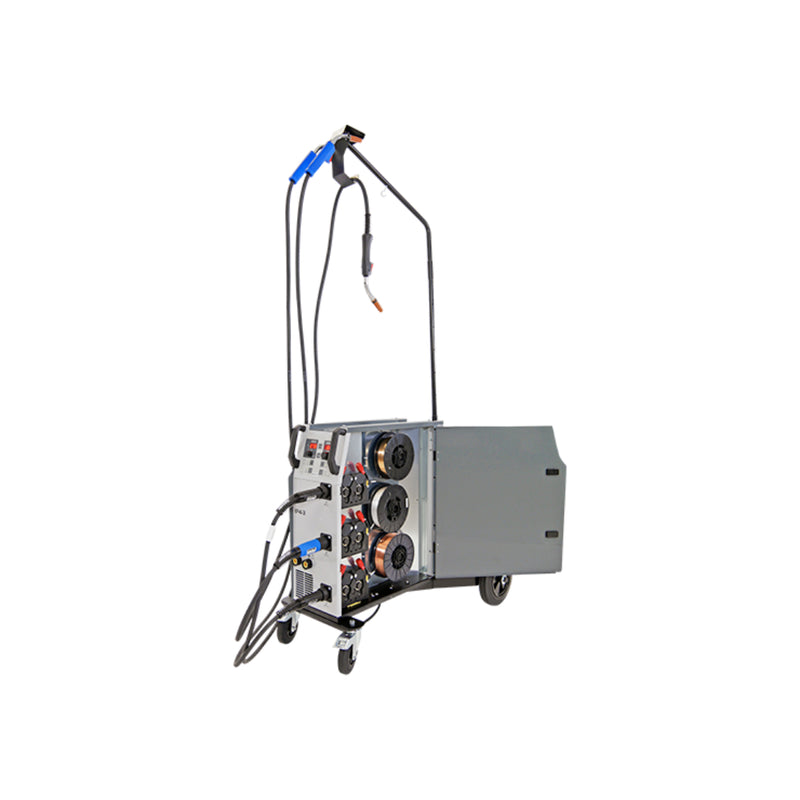

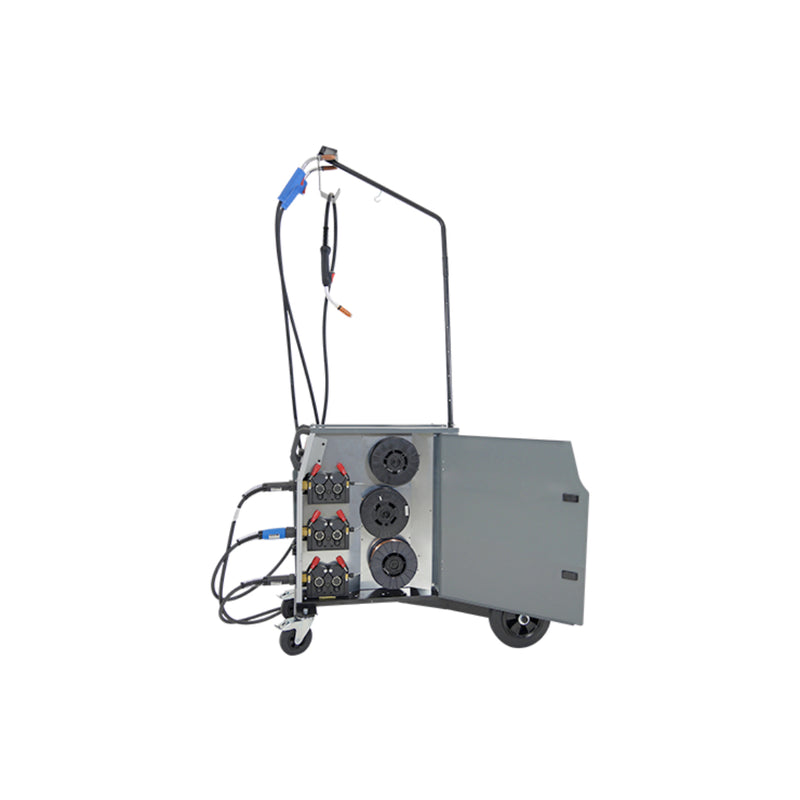

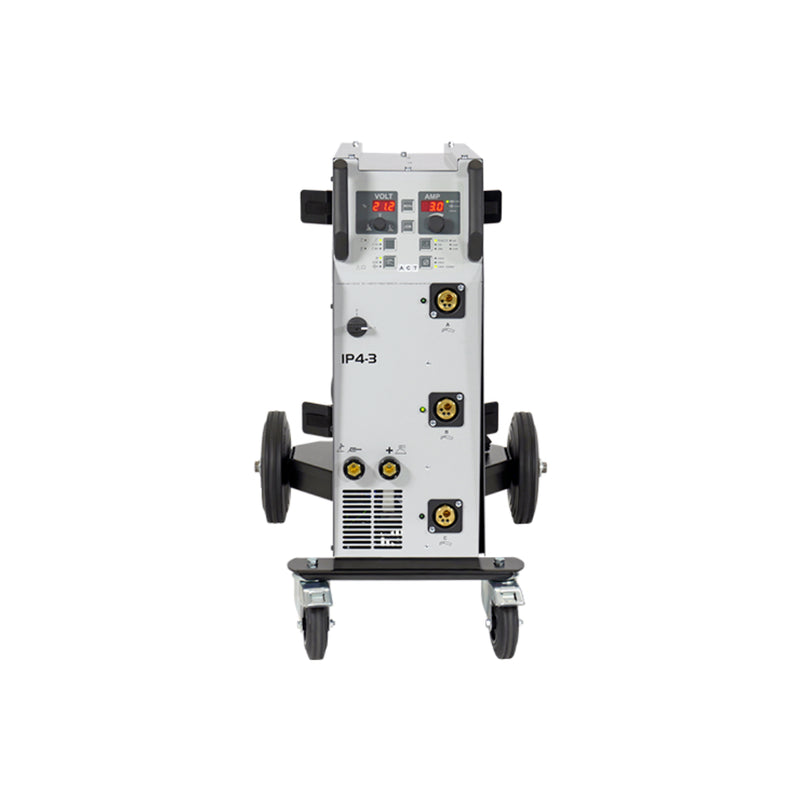

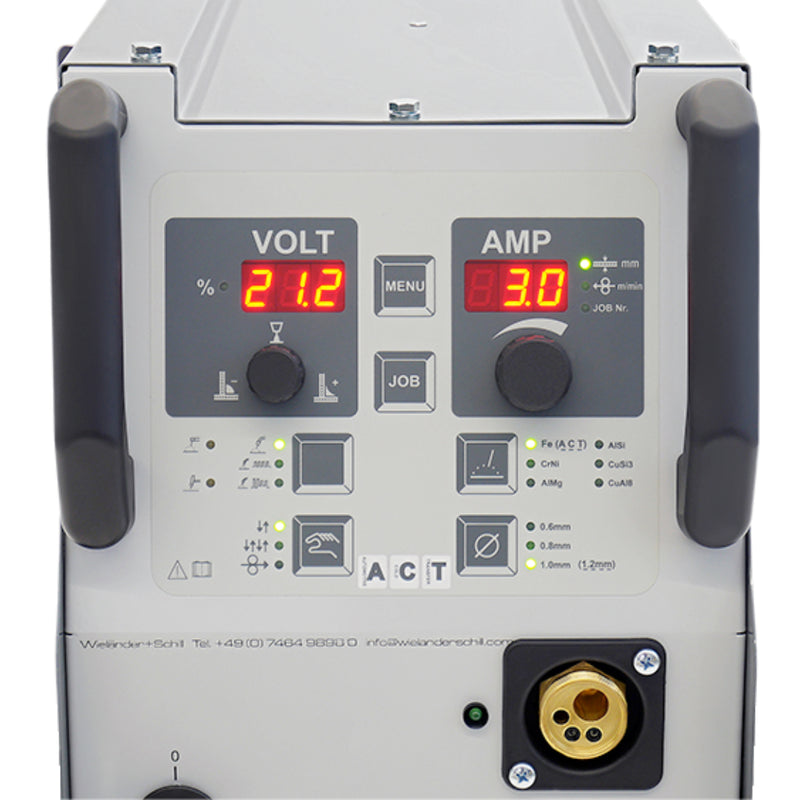

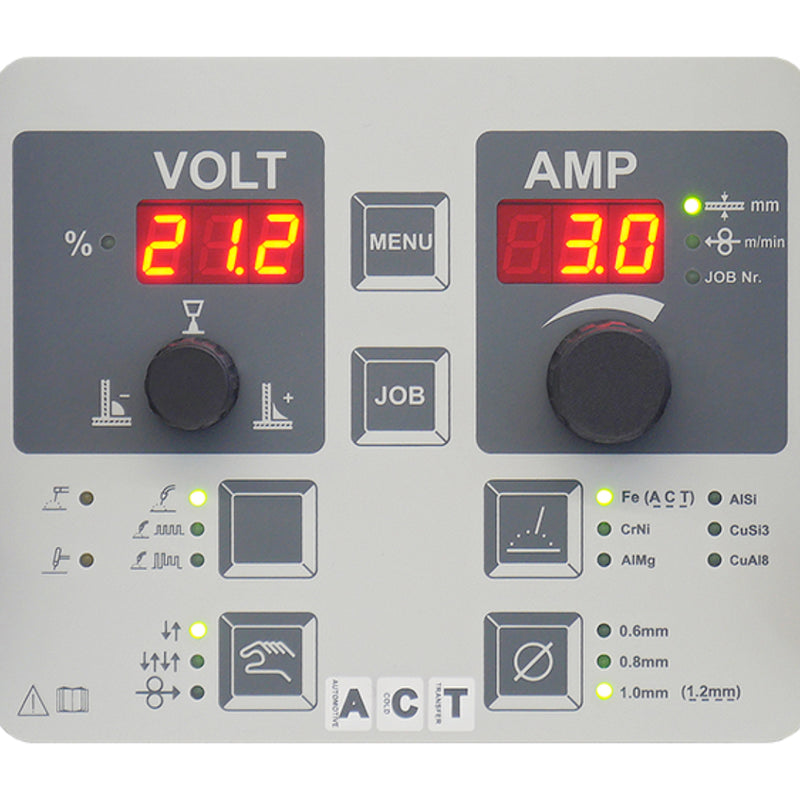

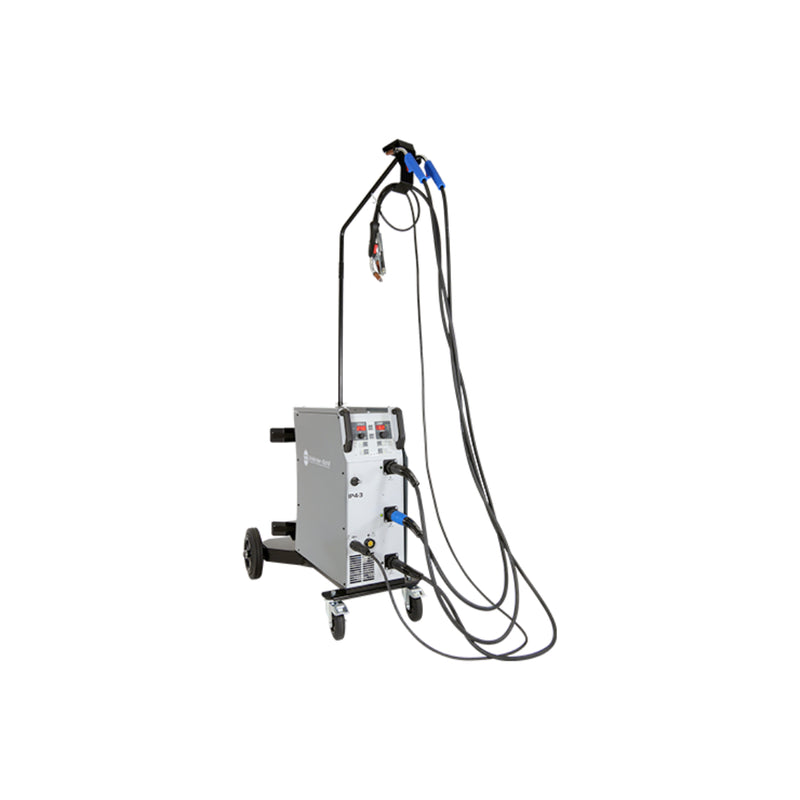

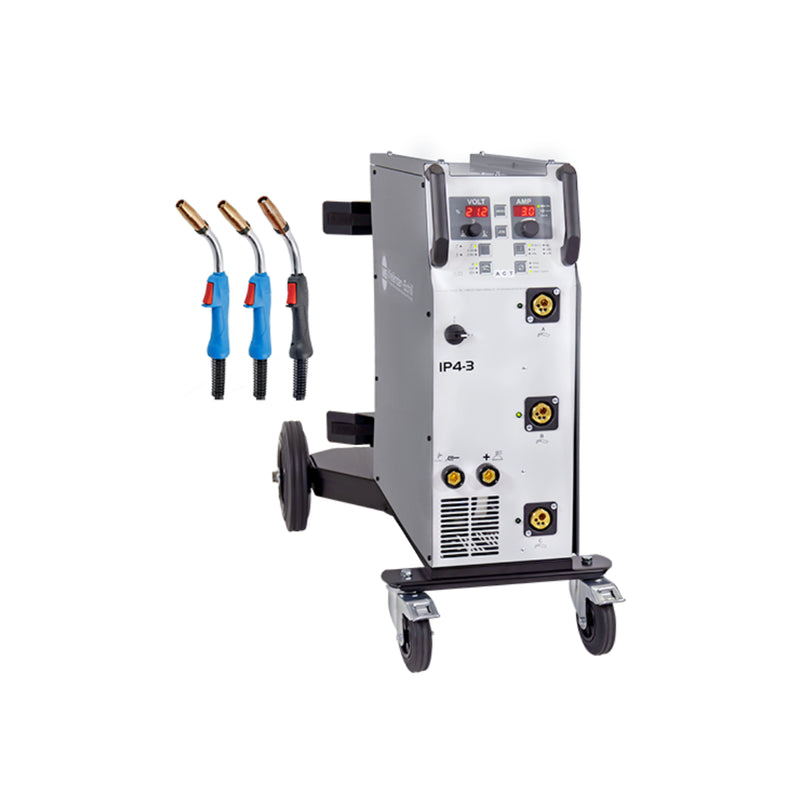

MIG Welder InvertaPuls IP 4-3 | 1 phase ~210V | 200A | K341299
Meets the requirements of: Acura, Alpha Romeo, Buick, Cadillac, Chevrolet, Chrysler, Dodge, Fiat, Ford, Genesis, GMC, GM, Honda, Hyundai, Infiniti, Jeep, Kia, Lexus, Lincoln, Mazda, Mitsubishi, Mopar, Nissan, RAM, Renault, Subaru, Tesla, Toyota, and VinFast.
The InvertaPuls IP 4-3 is the ideal welding machine for steel welding, aluminum welding, and MIG brazing, perfectly tailored to the needs of bodyshops and bodyshop technicians. Equipped with connections for up to three torches and automatic torch recognition, it enables easy handling and maximum flexibility. Thanks to the automatic "hold function" of the welding parameters and the robust wire feed unit with 4-roller drive, the InvertaPuls IP 4-3 guarantees maximum efficiency and precision in every application.
Features
- Automatic torch recognition
- Higher welding speed
- Lower heat input
- Very good gap bridging
- Less material distortion
- Automatic "hold function" of the welding parameters
- Welding Programs for: MIG Brazing (CuSi3, AlBz8, CuAl8) | steel/stainless steel | aluminum | TIG | flux-cored wire | electrode welding • Lower heat input
- Saving of individual welding programs
- Integrated interface for software updates
Equipped with:
- 1 x 337219 Wire feed rollers | steel | 0.6 mm & 0.8mm | PU: 2 pcs.
- 1 x 337220 Wire feed rollers | steel | 0.8 mm & 1.0 mm | PU: 2 pcs.
- 1 x 337221 Wire feed rollers | aluminium | 1.0 mm & 1.2 mm | PU: 2 pcs.
- 1 x 308110 Torch 3G | Steel welding | 3.0 m
- 1 x 308111 Torch 3G | ALU welding | 3.0 m
- 1 x 308116 Torch 3G | MIG brazing (CuSi3) | 3.0 m
- 1 x 304053 Ground cable with clamp | 5 m | 35 mm² | SK 35
- 1 x 311044 Double branch valve 1/4" for manometer (only DE and AT)
- 1 x 307060 Contact tips M6 x 28 mm | 10-piece set
- 1 x User manual
Technical Specifications:
| Current setting range: | 10 - 240 A |
|---|---|
| Effectiveness: | 86 % |
| Fuse: | 32 A |
| Length × width × height: | 1030 x 640 x 880 mm |
| Mains connection (Cu): | 3 x 4 mm² |
| Mains voltage: | 1 ~ 210 V |
| Mark of conformity: | CE |
| Open circuit voltage: | 96 V |
| Operating temperature: | -10 bis 40 °C |
| Power factor: | 0,75 |
| Protection class: | IP 23 |
| Sound pressure level: | 68 dB(A) |
| Voltage setting range: | 10 - 50 V |
| Weight: | 64 kg |
| Wire speed range: | 0,5 - 22 m/min |
