DISCONTINUED AND REPLACED BY THE NEXT GENERATION RESISTANCE SPOT WELDER, INVERTASPOT NG

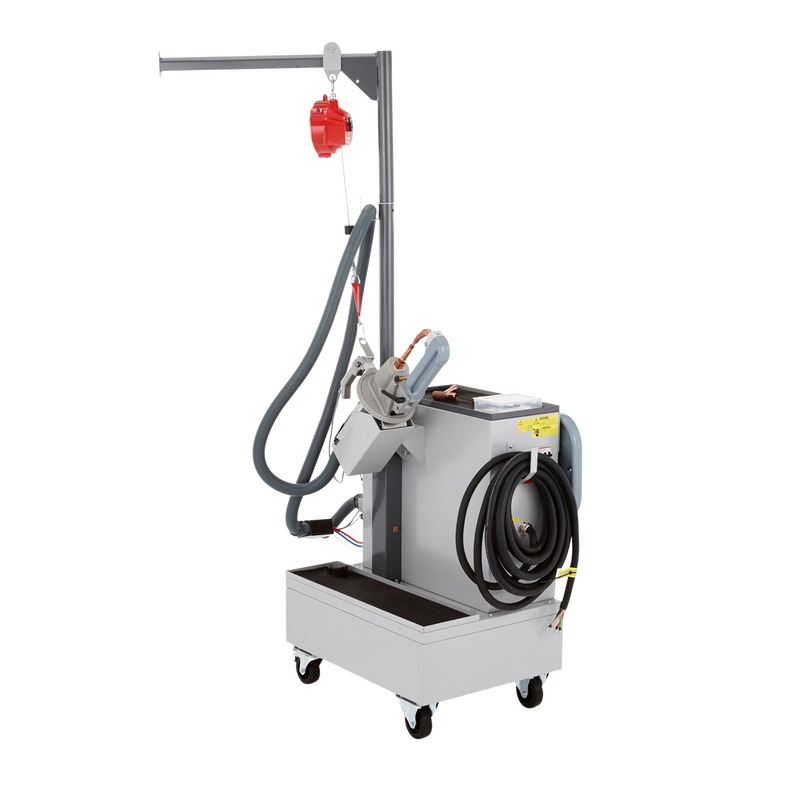

Spot Welding Machine with Inverter Technology

Spot welder with Inverter Technology. Fully automatic function in standard mode. Expert mode and Manual mode for ambitious jobs.

The part number for the VAS equivalent is VAS 6545A and must be purchased via Snap-On.

InvertaSpot GT: Press & GO - We like to make it easier for you!

Recommended by the leading automobile manufactures (OEMs) - with UL/CCC certification.

Features:

• Power unit + control board: the GT automatic recognizes and measures the sheet metal configuration automatically. The parameters pressure-amperage-time are perfectly and automatically managed and regulated working in Automatic mode no need for manual settings.
• Manual Mode - Expert Mode - Program-Saving-Mode - OEM programs - self-programming via front-board
• HF-inverter-technology / 10.000 Hz - welding current up to 13.000 A (on the job) - C-inverter transformer gun
• C-gun in compact design - electrode arms versatile in use - welding cable up to 5m - water cooling up to the tips - magnet field exposure and stress far the norms (EU-Richtlinie 2004/40/CE, EN50505, EN62135-2:2007 und BGV V11/2001) - welding data saved on SD card - traceability up to 100.000 welds- paper print out
• Operation: simple, multi-lingual menu - updates via SD card - via internet possible - universal programs and professional programs.

Delivery Contents:

• C trafo-gun + C arm no 1
• 1 x Operation manual
• 1 x 474005 balancer bar straight
• 1 x 474013 balancer gibbet
• 1 x 478060 balancer roller (cpl.)
• 1 x 498085 spring balancer
• 1 x 474017 insolation strap with snap-hock
• 1 x 474250 set of allen key (4+5mm)
• 1 x 497096 electrode cap A 32
• 1 x 474028 c-arms
• Rack
• 1 x 474085 hook for harness
• 1 x 478041 power supply cable hook
• 1 x 474007 wheel set

Technical Data:

• Packing unit: 1 pc.

• Welding current: DC
• Welding current max.: 13kA
• Setting ranges: 0 - 13kA
• Protection category: IP 21
• Supply voltage: 3 x 220-240 V/AC
• Working pressure: 6 - 8 bar
• Noise level: < 70 dB (A)
• Electrode pressure max.: 6,2kN
• Frequency: 50-60 Hz
• Certifications: CE / UL /CCC
• Tank capacity: 80 l
• Temperature class: A
• Open-circuit voltage: 12 V DC
• Continuous operation: 2,8kA
• Flow volume: 5 ltr./min
