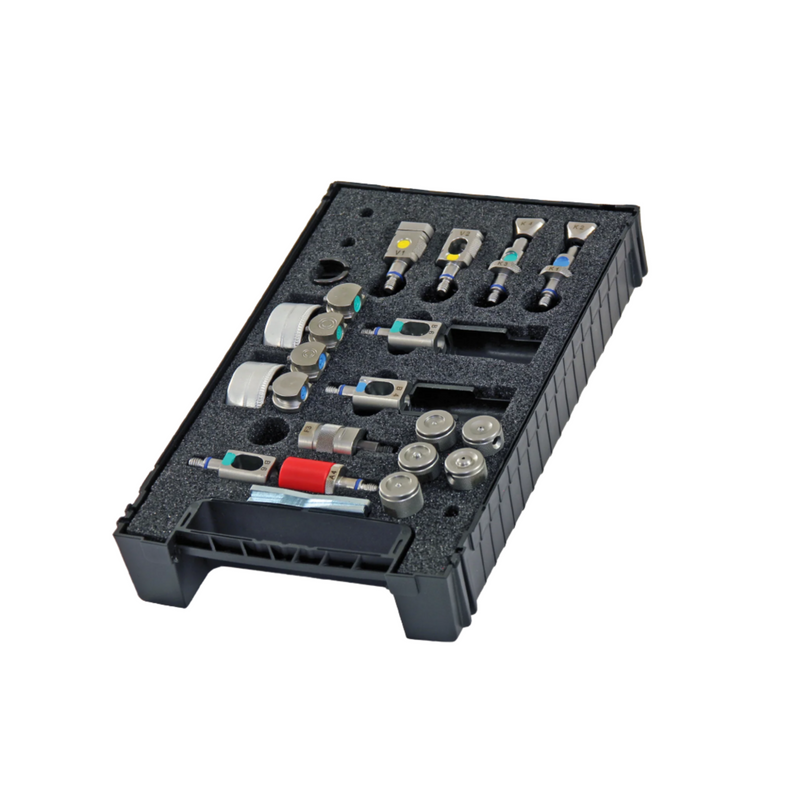

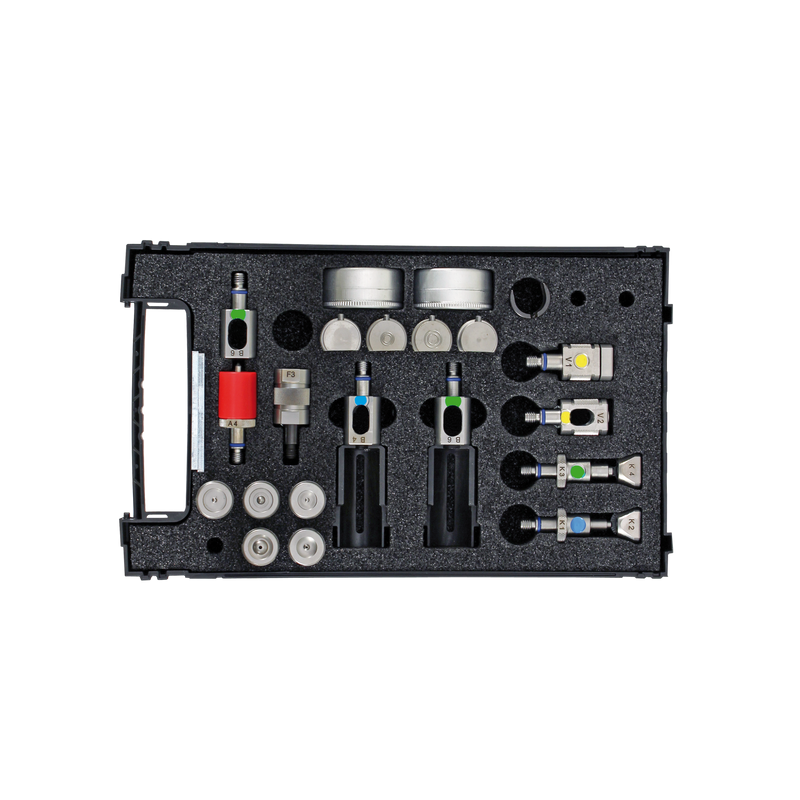

Tool Box RS-07 | Mercedes Benz | 700205

XPress 800 Riveting Tool

Tool box for the riveting process on Mercedes-Benz and Tesla vehicles.

24-piece riveting tool set with tools for riveting flow-form rivets (FFN) 6.0 and 8.0 mm, extrusion mandrel (PU) for punch rivets, re-forming closing head nipple, punching and calibrating Ø 6 and 8 mm, extension 26 mm, PushPull coupling and assembly key.

Delivery Contents:

• 1 x 700350 Die set V1 + V2 | Solid Self Piercing Rivets
• 1 x 700352 Hole punching & calibration die set | Ø 6 mm
• 1 x 700353 Hole punching & calibration die set | Ø 8 mm
• 1 x 700270 B6 | Punching & extraction die | Ø 8 mm
• 1 x 700340 Die set C1 + C2 | Flow Form Rivets | Ø 6 mm
• 1 x 700338 Die set C3 + C4 | Flow Form Rivets | Ø 8 mm
• 1 x 700276 C5 | Setting die for Flow Form Rivets (FFR)
• 1 x 700348 K1 + K2 | Punching & reshaping die | Ø 6 mm
• 1 x 700349 K3 + K4 | Punching & reshaping die | Ø 8 mm
• 1 x 700341 A4 | Extraction mandrel with polyurethane spring
• 1 x 700337 F3 | Extension | 26 mm
• 1 x 700280 Z1 | Coupling
• 1 x 700299 Z4 | Assembly tool | PU: 2 pcs.
• 1 x SKR punching crowns | Ø 6 mm | PU: 20 pcs.
• 1 x SKR punching crowns | Ø 8 mm | PU: 20 pcs.

Note: The description of the areas of application and the individual work processes must be taken from the corresponding repair procedures of the OEM.
