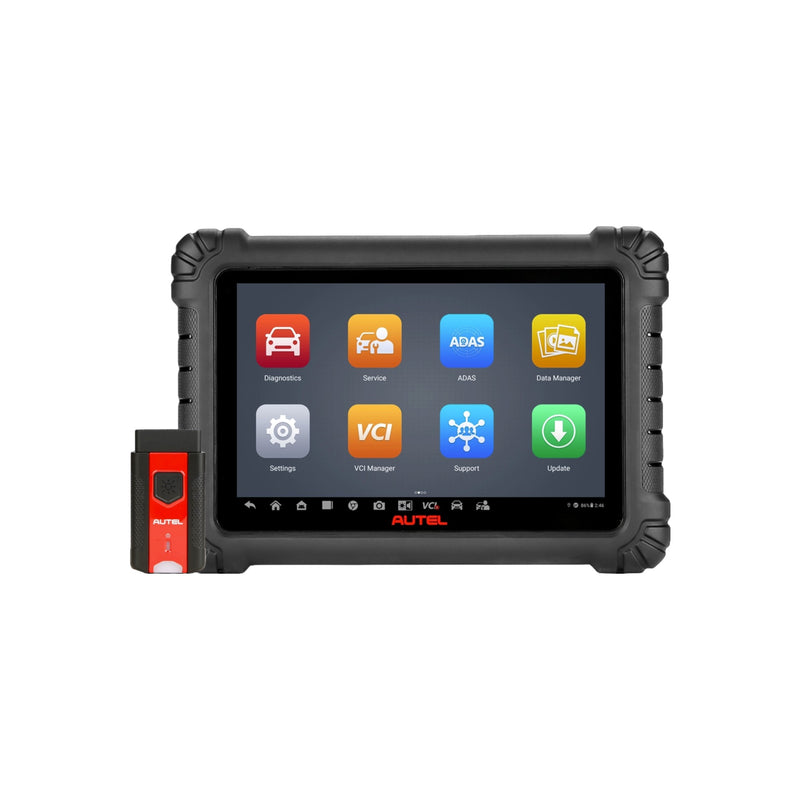

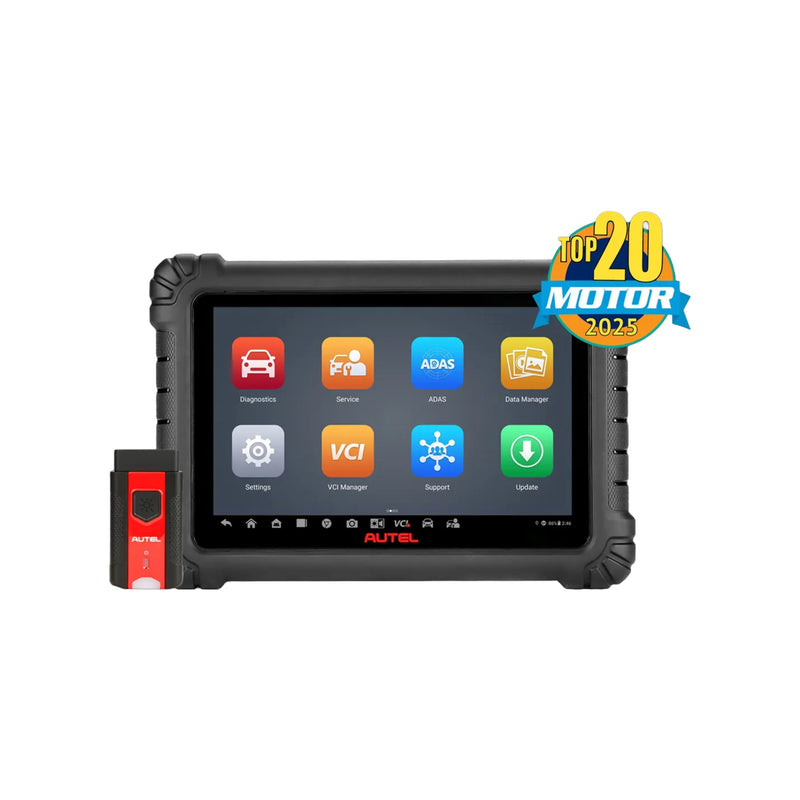

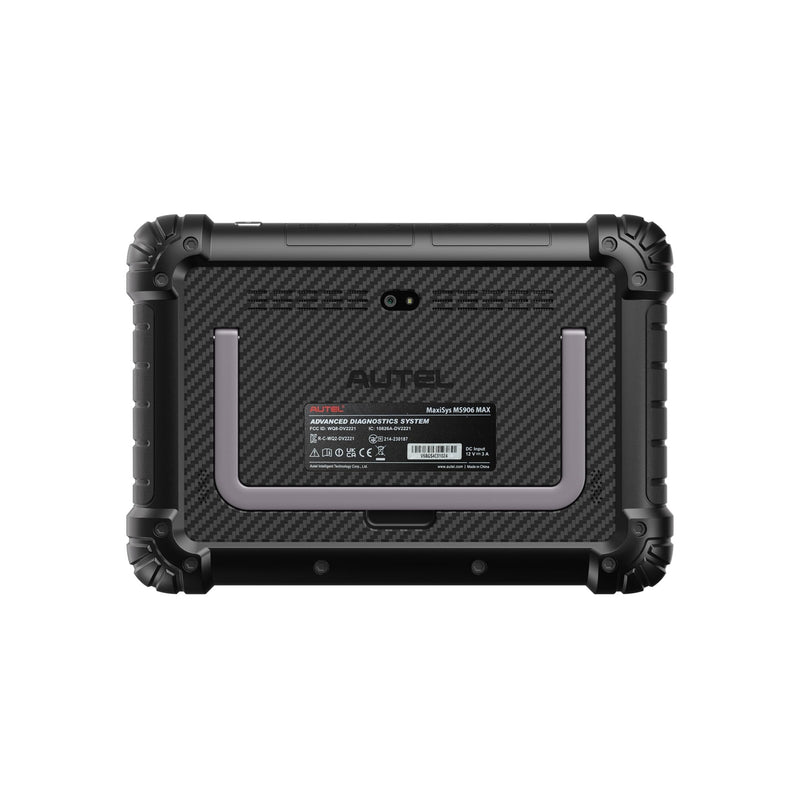

MaxiSYS MS906 MAX Professional Diagnostic Tablet with Bluetooth VCI
The MaxiSYS MS906 MAX is a 10.1-inch Android-based wireless diagnostics and service tablet with professional capabilities. Featuring industry-leading coverage of U.S., Asian, and European vehicles, 1996 and newer. Perform Pre- and Post-Scans, all-systems diagnostics including reading and erasing codes, viewing and graphing Live Data, and performing bi-directional tests and services including Active Tests and Special Functions. Advanced functionality includes coding and adaptations. Features extensive, vehicle-specific, direct-to-system service and maintenance tasks. Quickly execute 40 service tasks, including oil light reset, DPF regen, steering angle sensor reset, airbag reset, occupancy seat reset and brake bleed. Includes Bluetooth-enabled MaxiVCI V200 supporting standard and advanced vehicle communication protocols. Easily share customizable reports via email and text. Supports direct battery, starter and charging system testing, and videoscope capability with additional purchases. Includes one year of free software updates and is covered by a one-year Limited warranty.
Ideal For:
Professional automotive diagnostic workflows: all-systems scanning and fault isolation.
Collision and mechanical shops: advanced service resets and module adaptations.
Technicians needing OE-level coding and bi-directional active tests across a wide range of vehicles. -
This automotive scanner handles all major diagnostic needs in shop workflows; from comprehensive “Auto Scan 2.0” system sweeps to live data graphing, freeze-frame analysis, and service resets with expandable functionality for battery/charging tests and videoscope integration. The tablet platform also supports report sharing and data management via Wi-Fi and on-device storage.
Key Features & Benefits:
◆ Includes one-year free software updates and is covered by a one-year Limited warranty.
◆ 10.1-inch touchscreen wireless professional diagnostics and service tablet.
◆ Extensive vehicle coverage of U.S., Asian and European vehicles, 1996 and newer.
◆ Perform all-systems diagnostics, including read and erase codes, view and graph Live Data
◆ Perform bi-directional Active Tests and Special Functions.
◆ Extensive service and maintenance task menu.
◆ Perform coding and adaptations.
◆ Includes Bluetooth-enabled MaxiVCI V200 for support of standard and advanced communication protocols.
◆ 128GB storage and extended battery life.
◆ Supports direct battery, starter and charging system testing and videoscope use with additional product purchases. -
Operating System Android™ 10 Processor Octa-core Processor Memory 4 GB RAM & 128 GB On-board Memory Display 10.1-inch LCD Capacitive Touchscreen with 1920 x 1200 Resolution Rear Camera 13 MP Connectivity - Wi-Fi (802.11 a/b/g/n/ac)
- BT 5.0 (BR/EDR + BLE)
- BGPS
- USB 2.0 (Two USB Host Type A, one Mini USB)
- SD Card (Support up to 256 GB)
Sensors - Gravity Accelerometer
- Ambient Light Sensor (ALS)
Audio Input/Output - Microphone
- Dual Speakers
- 3-band or 4-band 3.5 mm Headset Jack
Power and Battery - 11600 mAh 3.85 V Lithium-polymer Battery
- Charging via 12 V DC Power Supply
Input Voltage 12 V/3 A Adapter Operating Temperature 0 °C to 50 °C (32 °F to 122 °F) Storage Temperature -10 °C to 60 °C (14 °F to 140 °F) Dimensions (WxHxD) 311.1 mm (12.25") x 216.0 mm (8.50") x 39.9 mm (1.57") Weight 1.71 kg (3.77 lbs) Protocols PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411
Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819
(TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI),
UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL),
SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2,
BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850
PWM (Ford SCP), SAE-J1850 VPW (GM Class2), ISO13400, CAN FD - ◆ MaxiSYS MS906 MAX Quick Reference Guide
◆ MaxiSYS MS906 MAX User Manual
◆ MaxiSYS MS906 MAX Packing List
◆ MaxiSYS MS906 MAX Flyer
