Lithium Battery Fire Blanket – 4 x 3 metres with Carrying Bag | LBB6143

by Prosol
Original price $1,890.00 - Original price $1,890.00
Original price
$1,890.00
$1,890.00 - $1,890.00
Current price $1,890.00
Availability:
Only 1 left!

Meets the requirement of Electric Vehicle Handling Qualified (EVHQ)

DOWNLOAD SPECIFICATION AS PDF

Designed for EV Lithium Battery Packs

The most common form of fire in electric or hybrid vehicles is when the high energy battery is damaged, or a manufacturing fault results in a short circuit. The battery can then go into “Thermal Runaway”, this is a phenomenon where damaged cells heat up rapidly to such an extent that a fire starts. The fire then compromises adjoining cells and a “domino effect” occurs spreading to the whole battery array.

Thermal Runaway fires cannot be extinguished by conventional means!

The electrolyte in a Lithium-Ion battery usually contains hydrocarbon solvents which fuels the fire. If unchecked extremely high temperatures can result.

Utilising an EV Car Fire Blanket minimises the combustion potential by depriving the fire of Oxygen. This inhibits the fire and consequently temperatures drop rapidly, reducing potential damage to surrounding vehicles and property.

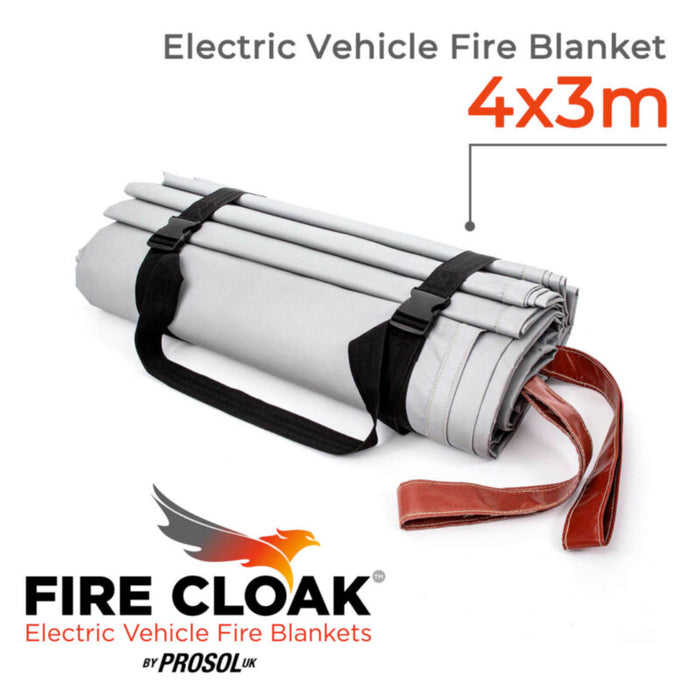

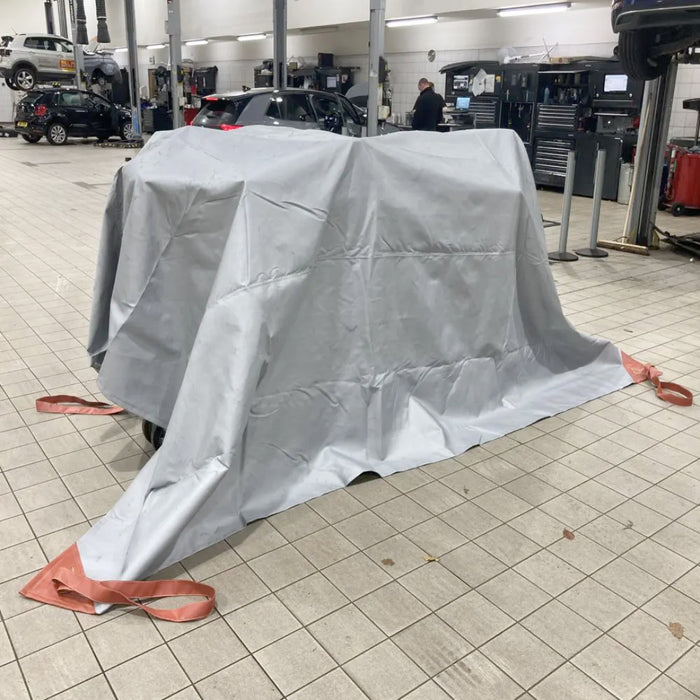

The EV Car Fire Blanket can be deployed easily by two people and is supplied in a convenient storage holdall for protection and ease of transport.

Material Description:

Ultra-high Silica content fabric with fire resistant grey silicone coating to both sides. Reinforced corners with heavy duty silicone fabric pull handles. All seams and handles stitched with high temperature resistant thread.

Dimensions: 4 x 3 metres – Weight: c.10.2Kg.

Material Specification as per BS EN 112127:1998:
Property Units Value Tolerance
Weight g/m2 700gsm ± 5%
Thickness mm 0.65
Fire Resistant Coating g/m2 280 (140 each side) ± 10%
Tensile Strength WARP – ISO 4606:1995 N/5cm 4000 N/5cm
Tensile Strength WEFT – ISO 4606:1995 N/5cm 2000 N/5cm



Material Data:

Temperature Resistance: Base fabric will withstand 1,000°C (unstressed)
Melting Point: >1,600°C
Shrinkage: <7%, tested at 900°C for 4 hours

Standard Test Value Notes
BS EN ISO 811: 2018 Hydrostatic Pressure Test 44cm/H2O (Mbar) avg. result
BS EN ISO 9237: 1995 Air Permeability 0.06mm/sec avg. result
BS 7209: 1990 Water Vapour Permeability 187.2g/m2 WVPI 22.0%
