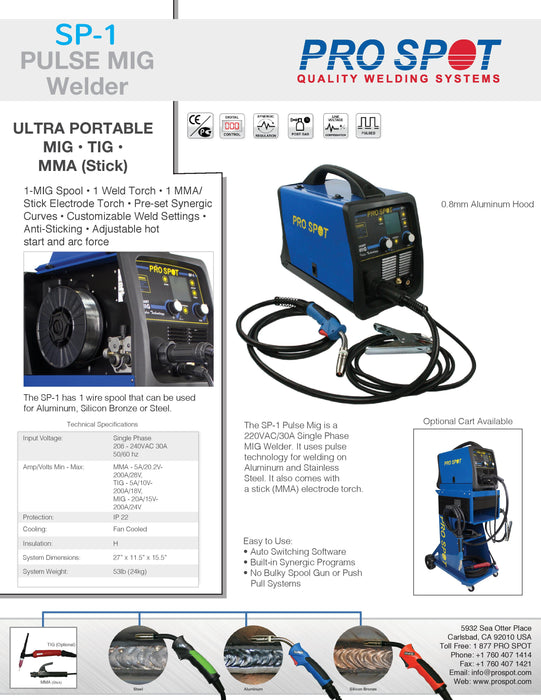

SP-1 | Pulse MIG


For pricing, shipping, and delivery, fill out the 'Request a Quote’ form below

Request a Quote

The SP-1 Pulse MIG is ideal for body shops welding stainless steel or aluminum. In synergic mode, the microprocessor controls optimal arc stability and weld quality. The SP-1 also comes equipped for MMA/stick welding. There is an optional TIG torch available. MIG and TIG welding can be done in continuous or pulse mode. Maximum power output of 200A.

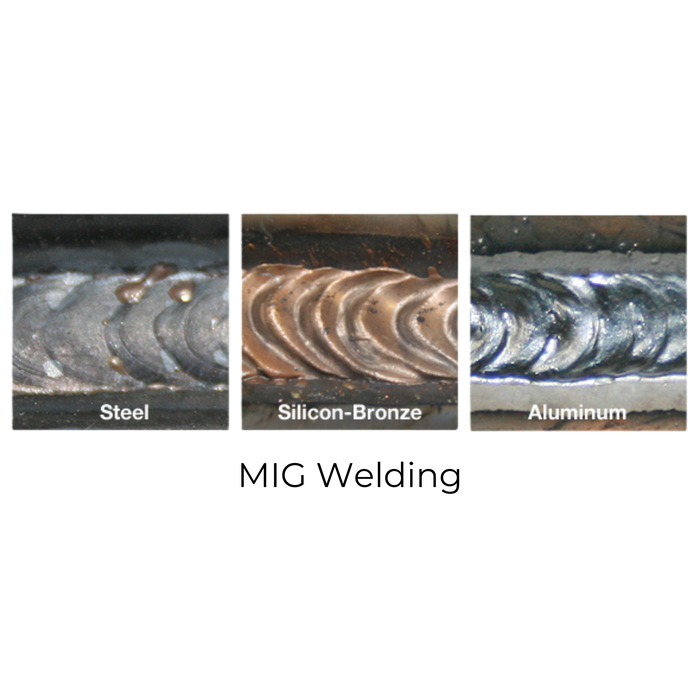

MIG Welding
Features preloaded weld programs and synergic curves for all the common welding situations in automotive repair.

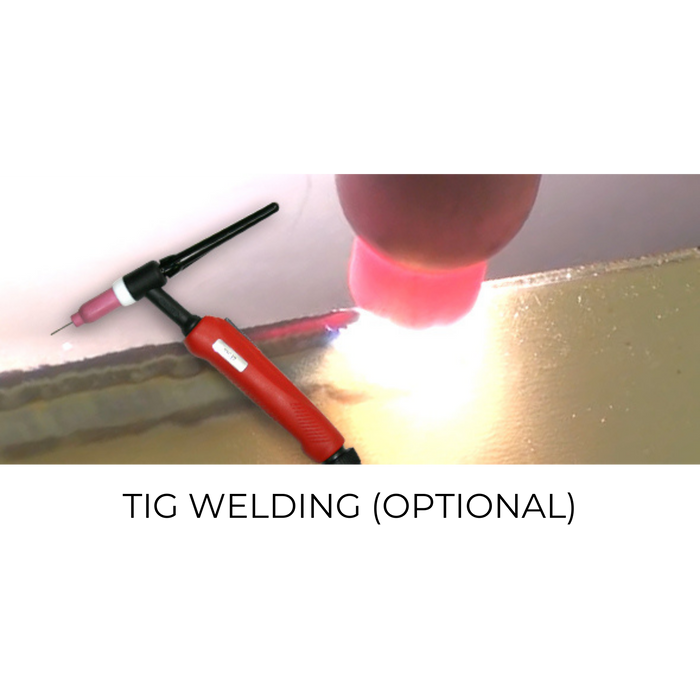

TIG Welding
TIG welding can be done in continuous or pulse mode (optional).

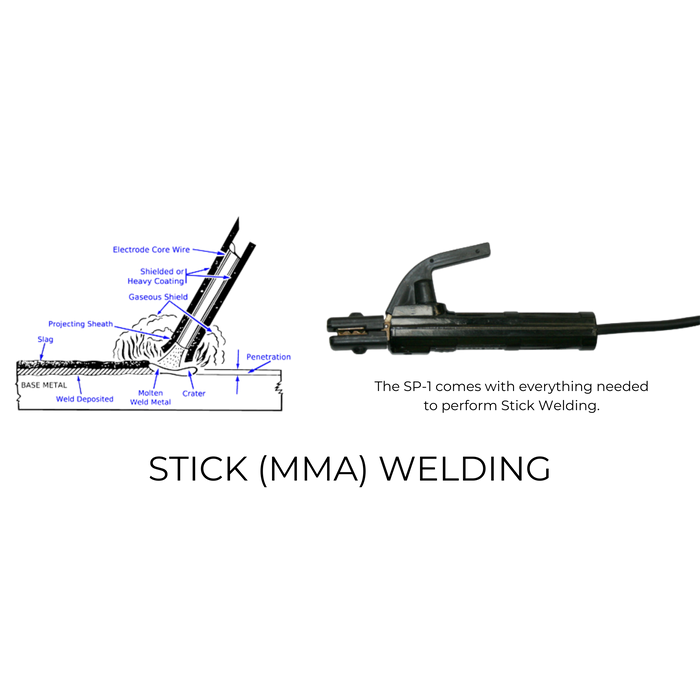

MMA/Stick Welding
Everything needed for MMA/stick welding is included.

Universal Cart
The SP-1 has a Universal Cart Available to make moving the welder around your shop easier.

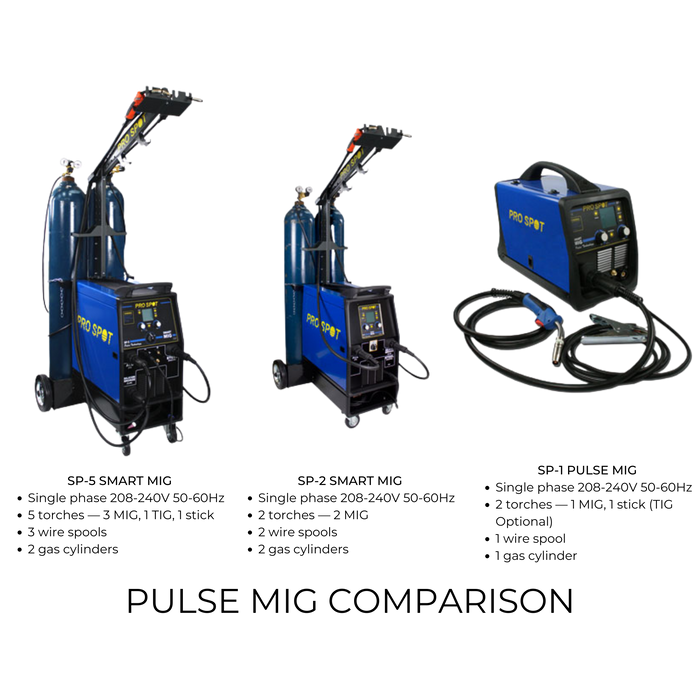

Pulse MIG Comparison
The main difference between the three pulse MIG series welders is the number of torches.

  • 2 Torches — 1 MIG, 1 Stick
  • TIG Welding (optional)
  • 1 Wire Spool
  • Pulsed Welding
  • Continuous Mode
  • Inverter Technology
  • Preloaded Synergic Programs
  • Easy Feed Wire System
Technical Specifications

Input Voltage:

Single Phase

208 - 240V 50-60Hz


Min - Max:

MIG - 20A / 15V - 200A / 24V
TIG - 5A / 10V - 200A / 18V
MMA - 5A / 20.2V - 200A / 28V
Protection: IP 22
Insulation: H
Shipping Weight: 43lb (20kg)
