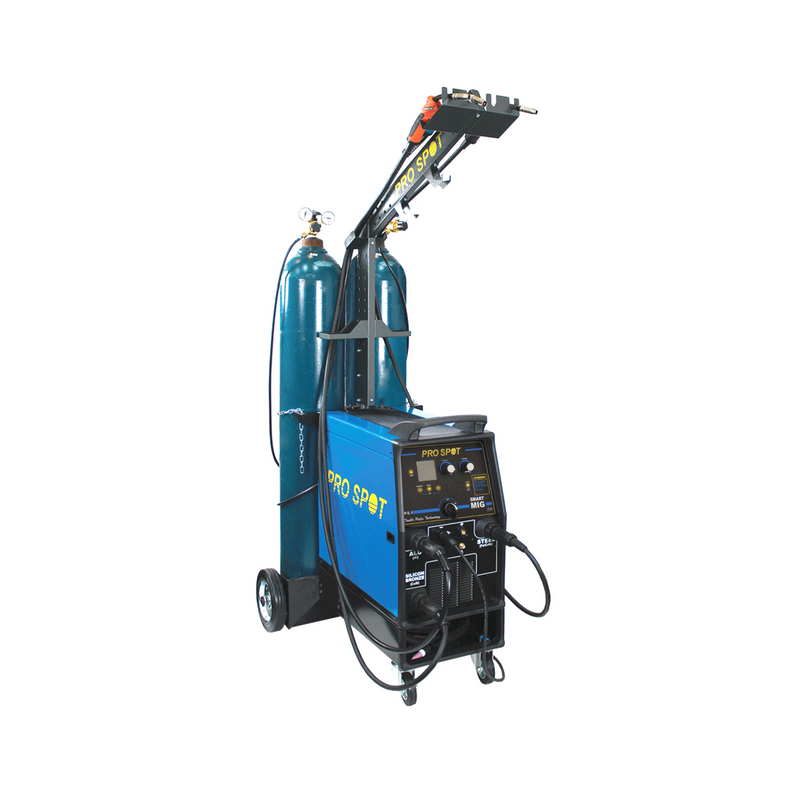

SP-5 DP | Single Phase Smart Double Pulse MIG Welder

Save $1,003.15 Save $1,003.15
Original price $16,998.15
Original price $16,998.15 - Original price $16,998.15
Original price $16,998.15
Current price $15,995.00
$15,995.00 - $15,995.00
Current price $15,995.00

Delivery time

The SP-5 DP would be available within 2-4 weeks. Pre-orders are processed on a first-purchase, first-ship basis.

Approvals | Components List | Brochure



The SP-5 Double Pulse Smart MIG Welder was designed with microprocessor controls and weld programs specifically geared for the collision repair industry. Applications include Aluminum MIG/MAG, MIG Brazing, Steel MIG/MAG, Root Welding, TIG and MMA/Stick Welding.

Single Phase MIG Welder
Industrial strength and ready for heavy welding applications in the shop.

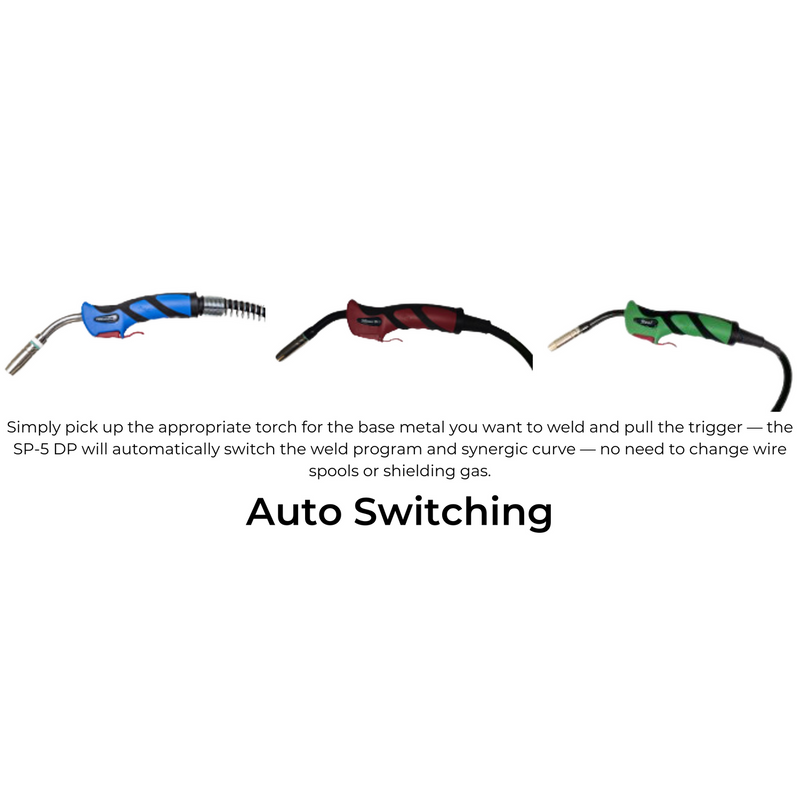

Auto Switching
To switch welding different base metals, simply pick up the appropriate torch and pull the trigger, the microprocessor and weld programs do the rest.

Double Pulse
Safely and confidently repair aluminum and steel with automatically controlled pulse welding.

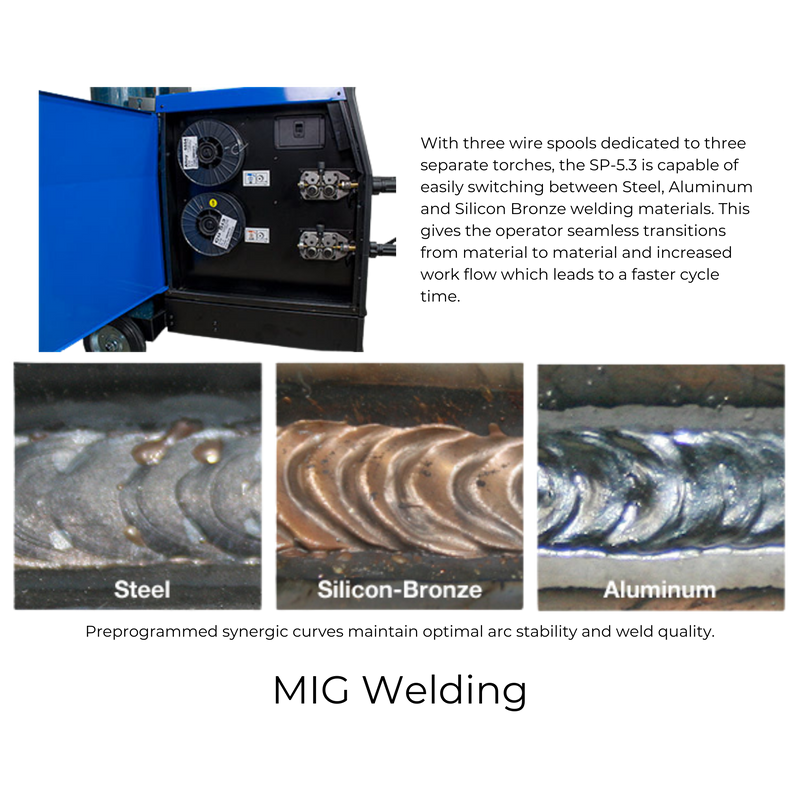

MIG Welding
Features three MIG welding torches and wire spools. Also includes preloaded weld programs and synergic curves for all common welding situations in automotive repair.

Multiple Welding Processes
Accessing multiple applications is as simple as pressing a button and making your selection.

  • 1ph. Machine

  • Multiprocess CC/CV

  • MIG/MAG Double Pulse Function

  • Root Welding Function

  • Multiple Welding Processes

  • Auto Switching
  • USB Port For Upgrades, Parameter Saves and Diagnostics

  • LCD Display Provides Full Information To The Operator

  • 12A Minimum Welding Current
  • User Defined Memories

  • Multi-Torch System
Technical Specifications
Input Voltage: Single Phase
208-230V 33A 50-60Hz


Min - Max:
MIG - 20A/15V - 200A/24V
MMA - 5A/20.2V - 200A/28V
TIG - 5A/10V - 200A/18V

Protection: IP 23S
Insulation: H
Shipping Weight: 205lb (93kg)
