Tool Box RS-15 | Lucid Motors | 700191

Tool Box RS-15 | Lucid Motors

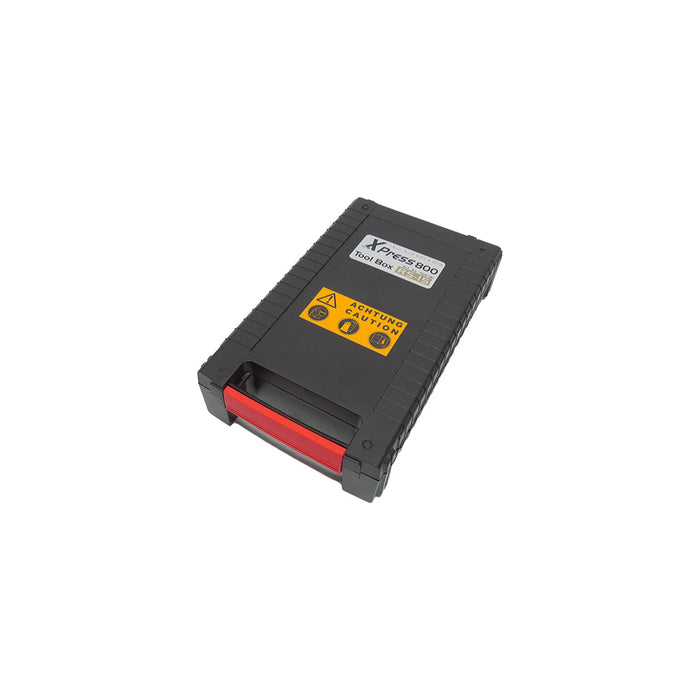

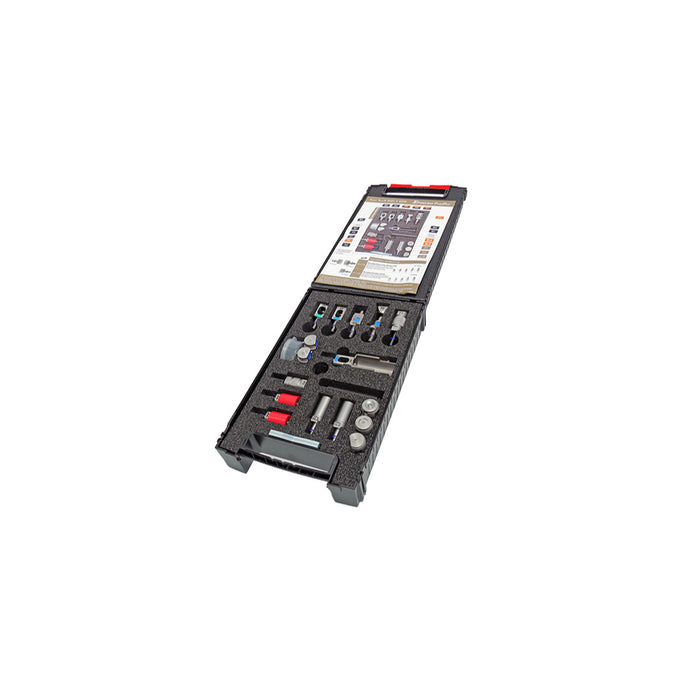

Streamline your self-piercing rivet repairs with the RS-15 Tool Box—customized for Lucid Motors specifications. This comprehensive kit includes precision mandrels, dies, and accessories designed for effortless punching, extraction, and reshaping of 6 mm and 8 mm rivets. Everything you need for on-vehicle panel joining and flow-form riveting is organized in one mobile case.

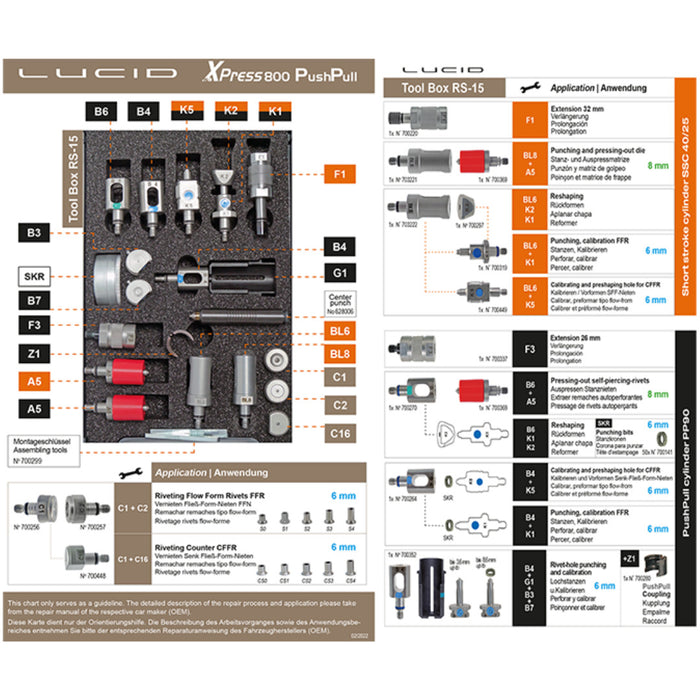

Features & Scope of Delivery:

• Extraction Mandrels: 2 × 700369 A5 with polyurethane springs for smooth rivet removal.

• Punching & Extraction Dies: Ø 6 mm (703222 | BL6, 700264 | B4) and Ø 8 mm (703221 | BL8, 700270 | B6) for fast, precise hole-making and rivet extraction.

• Flow-Form Rivet Dies: 700340 C1 + C2 set and 700448 C16 countersunk setting die for 6 mm flow-form rivets.

• Shaping & Calibration: 700449 K5 and 700348 K1 + K2 dies ensure perfect panel fit and finish.

• Extension & Coupling Tools: 700220 F1 (32 mm) and 700337 F3 (26 mm) extensions plus 700280 Z1 coupling for hard-to-reach spots.

• Assembly Tools & Crowns: 700299 Z4 assembly tool (2 pcs.) and 20 × SKR punching crowns provide complete rivet installation support.

Equip your shop with the RS-15 Tool Box for reliable, OEM-compliant rivet repairs—ideal for maintaining Lucid Motors’ high-precision body panels. Availability, service, and detailed repair procedures should follow Lucid’s official specifications.

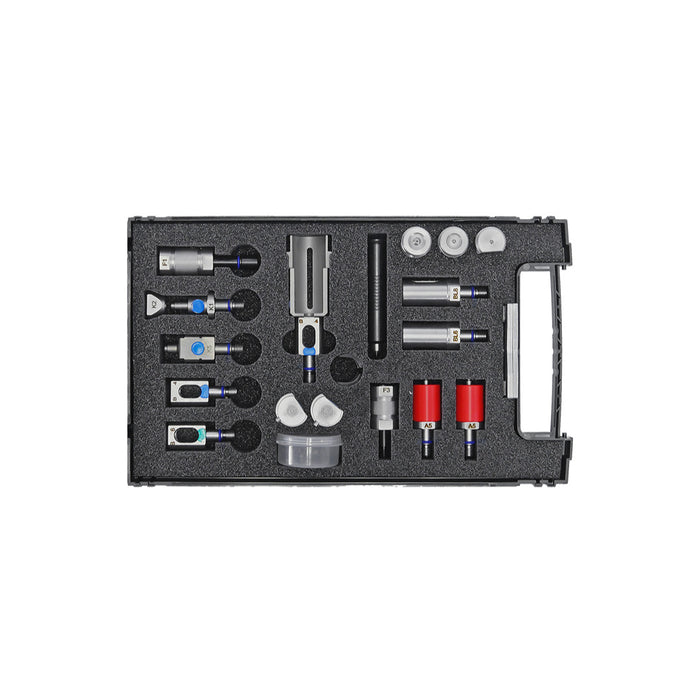

Scope of Delivery:

• 2 x 700369 A5 | Extraction mandrel with polyurethane spring
• 1 x 703222 BL6 | Punching & extraction die | Ø 6 mm
• 1 x 703221 BL8 | Punching & extraction die | Ø 8 mm
• 1 x 700270 B6 | Punching & extraction die | Ø 8 mm
• 1 x 700340 Die set C1 + C2 | Flow Form Rivets | Ø 6 mm
• 1 x 700448 C16 | Setting die for Countersunk Flow Form Rivets
• 1 x 700449 K5 | Punching & shaping die | Ø 6.0 mm
• 1 x 700352 Hole punching & calibration die set | Ø 6 mm
• 1 x 700264 B4 | Punching & extraction die | Ø 6 mm
• 1 x 700348 K1 + K2 | Punching & reshaping die | Ø 6 mm
• 1 x 700220 F1 | Extension | 32 mm1 x 700337 F3 | Extension | 26 mm
• 1 x 700280 Z1 | Coupling1 x 700299 Z4 | Assembly tool | PU: 2 pcs.
• 1 x SKR punching crowns | Ø 6 mm | PU: 20 pcs.
