Welding Machine InvertaPuls IP7-2 ACT 3x200. Including Steel & Aluminum Kit | K332017

Original price $13,995.00 - Original price $13,995.00
Original price
$13,995.00
$13,995.00 - $13,995.00
Current price $13,995.00
1 in stock.

Gas-Shielded Welder for steel and aluminum welding - tested and approved by Honda, TESLA, and Acura. VW version is also available (contact us for more information).

This welding machine has a very simple, self-explanatory, and intuitive operation with 2-button handling.

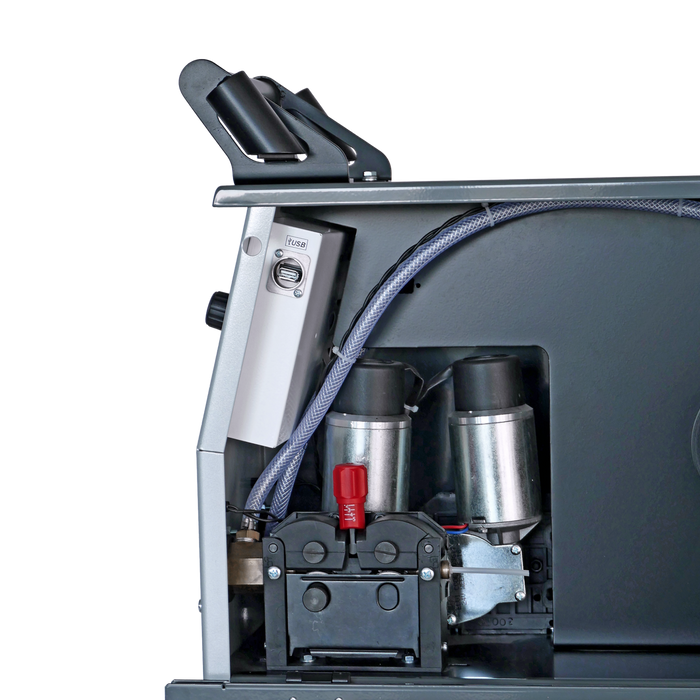

Equipped with a robust, industry-compliant, powder-coated sheet steel housing, 2x 4-roller drive with extra-large 37 mm drive rollers for a large welding wire drive support surface for optimum wire feed.

Ergonomic torch removal and narrow housing construction ensure efficient use in any body shop.

Features:
  • welding programs for MIG soldering (CuSi3, AlBz8, CuAl8), steel/stainless steel, aluminum, TIG (WIG), flux-cored wire and electrode welding
  • automatic hose package recognition
  • automatic "hold function" of the welding parameters
  • storage of individual welding programs
  • integrated USB interface for software update
  • very good gap bridging
  • less material distortion
  • less heat input
  • less rework
  • higher welding speed
Delivery Contents:
  • 1x welding machine IP 7-2 incl. castors
  • 1x gas bottle holder for 2x 20 litres
  • 1x set wire rolls for steel 0,6 / 0,8 mm
  • 1x set wire rolls for steel 0,8 / 1,0 mm
  • 1x set wire rolls for ALU 1,0 / 1,2 mm
  • 1x 3G torch for steel welding, 3m
  • 1x 3G torch for ALU welding, 3m
  • 1x ground cable
  • 1x nozzle starter set ( 10 pcs.)
  • 1x user manual

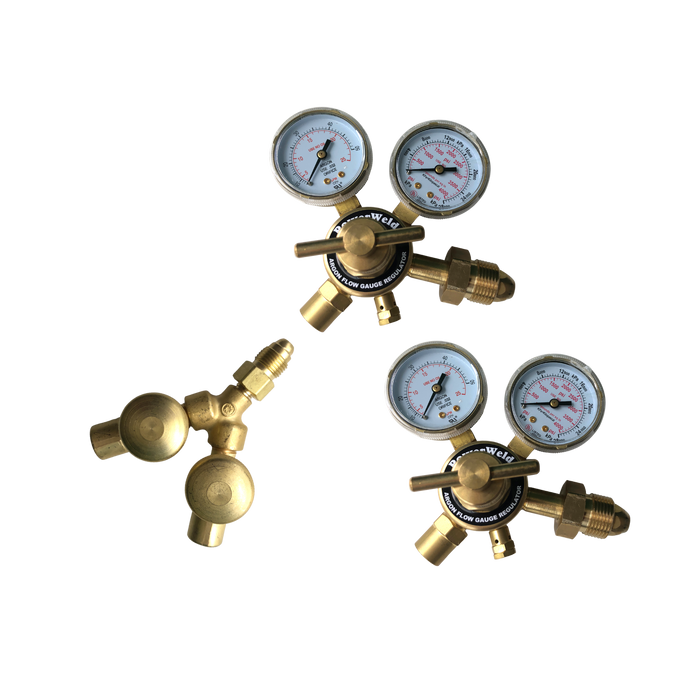

  • 2 High quality regulators and a Y valve

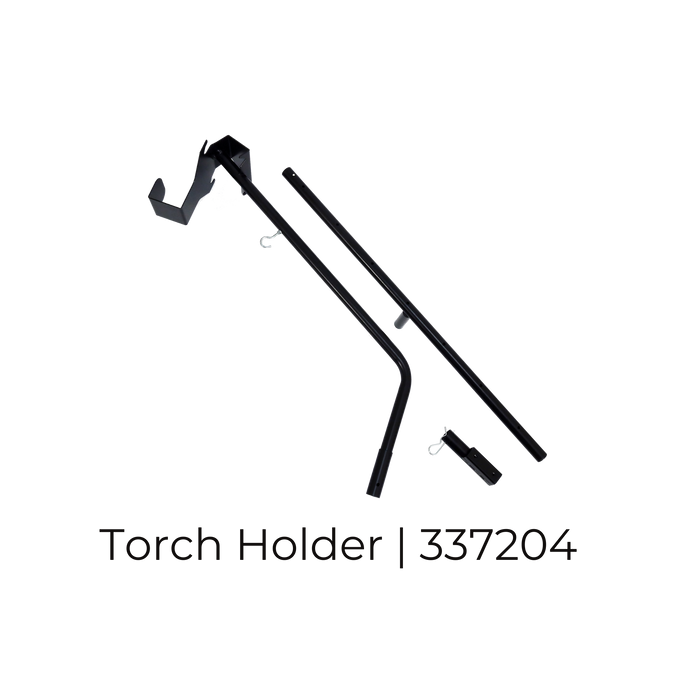

  • Torch holder | 337204
Technical Data:
  • Certifications: CE
  • Open-circuit voltage: 96V (MIG,TIG) / 72V (MMA)
  • Temperature range: -40 to +80°C
  • Wire speed: 0.5-22 m/min.
  • Voltage range: 10-50 V / 0.1 step
  • Fuse: 16 A time-lag
  • Continuous output: 200 Amp / 24V
  • Supply voltage: 3x400 V (+/- 15%)
  • Working temperature: -10...+40°C
  • Packing unit: 1 pc.
  • Length: 4 m (power cable)
  • Print feed rollers Ø: 37 mm
  • Efficiency: 85 %
  • Power supply (Cu): 4x2.5 mm²
  • Dimensions: 920 x 350 x 740 mm
  • Power factor: 0.75
  • Temperature class: H (180°C)
  • Protection category: IP23

InvertaPuls IP 7-2 Catalogue Here
