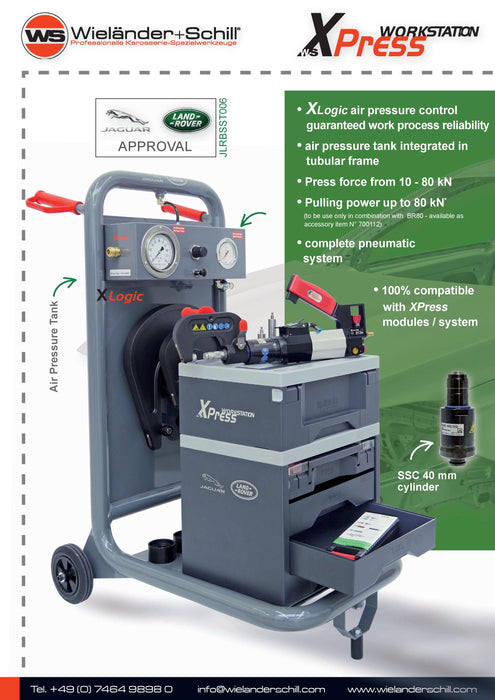

Product Description:

The heart of the XPress Workstation is the patented XLogic technology. This innovative system and the air tank integrated in the tubular frame of the trolley guarantee the user full process reliability* during the riveting process. Even if the air supply is unexpectedly interrupted, the riveting process can still be carried out reliably*.

*Process reliability during riveting is guaranteed by the use of the SSC 40 mm short stroke cylinder (included in the delivery contents).

Benefits:

• Innovative XLogic pressure monitoring guarantees process reliability
• Integrated compressed air tank in tubular frame
• Press force from 10 - 80 kN
• Tractive force up to 80 kN (only in conjunction with BR80 blind rivet adapter - available as optional accessory)
• Complete pneumatic system
• 100% compatible with XPress modules / system

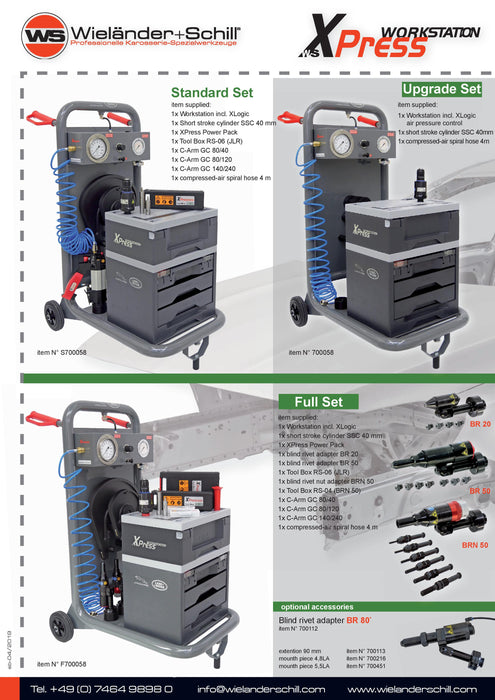

Delivery Contents:

• 1 x Workstation incl. XLogic pressure monitoring
• 1 x 700050 PowerPack | XPress 800
• 1 x 700067 SSC 40/25 Short stroke cylinder
• 1 x 700070 C-Arm GC 80/40
• 1 x 700071 C-Arm GC 80/120
• 1 x 700072 C-Arm GC 140/240
• 1 x 700100 BR 20 Blind rivet adapter
• 1 x 700101 BR 50 Blind rivet adapter
• 1 x 700110 BRN 50 Blind rivet nut adapter
• 1 x 700193 Tool Box RS-06 | Jaguar Land Rover (JLR) | version 4
• 1 x 700201 Tool Box RS-04 | BRN
• 1 x Spiral compressed air hose | 4 m

Technical Data:

• Packing unit: 1 pc.
• Air quality: ISO 8573-1
• Force: 25 - 80 kN
• Length x Width x Height: 820 x 610 x 1130 mm
• Operating pressure:  6 - 8 bar (87-131 psi)
