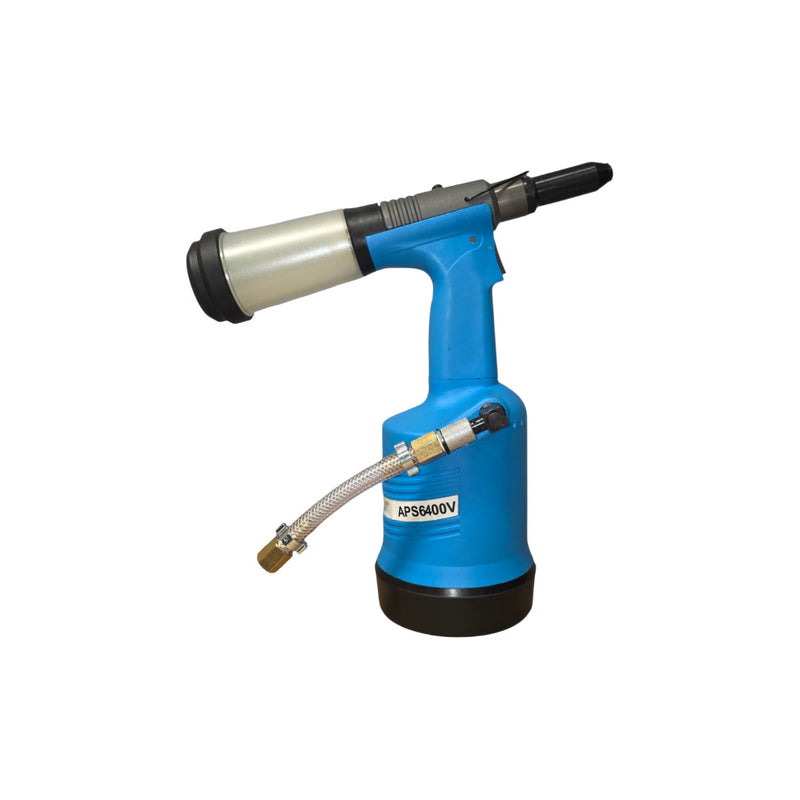

APS6400V Production Grade Heavy-Duty Air Riveter
Delivery time
Product Overview
The APS6400V Production Grade Riveter is a heavy-duty pneumatic tool engineered for high-volume industrial assembly and demanding collision repair environments. Delivering an impressive 4,200 lbs. of pulling force with a 17mm stroke, this tool effortlessly sets structural blind rivets up to 1/4" in diameter across all material types, including aluminum, steel, and stainless steel.
Designed with continuous production in mind, the riveter integrates a built-in vacuum assist system that holds rivets securely in the nosepiece and instantly draws spent mandrels into a collection container. Combined with an ergonomic trigger and an integrated air shut-off valve, the APS6400V maximizes operator comfort, reduces shop noise, and conserves air during idle periods.
Key Features
- 4,200 lbs. Pulling Force: Generates immense hydraulic pulling force to set tough structural rivets up to 1/4" in diameter reliably.
- Universal 1/4" Capacity: Capable of setting blind rivets up to 1/4" across all material types, including aluminum, carbon steel, and stainless steel.
- Vacuum Assist & Mandrel Collection: Features an active vacuum system that retains rivets in any orientation and automatically transfers spent mandrels to a dedicated collection bottle for a cleaner, safer workspace.
- ntegrated Air Shut-Off Valve: Equipped with an air shut-off valve to manage airflow directly at the tool and conserve compressed air when not in active use.
- 17mm Stroke Length: Delivers a generous 17mm stroke to break rivets cleanly in a single actuation cycle.
- Ergonomic Trigger: Features a smooth, ergonomically designed trigger to minimize hand fatigue during repetitive production runs.
Technical Specifications
| Property | Specification |
| Model / Product Name |
APS6400V Production Grade Riveter |
| Duty Rating |
Heavy-Duty / Production Grade |
| Capacity |
Up to 1/4" (All Materials) |
| Pull Force |
4,200 lbs. |
| Stroke Length |
17 mm |
| Vacuum Assist |
Yes |
| Mandrel Collection System |
Yes |
| Air Shut-Off Valve |
Yes |
| Trigger Type |
Ergonomic |
Ideal Use Cases & Applications
- Heavy Industrial & Assembly Lines: Designed for continuous production environments requiring fast, repetitive setting of large-diameter structural fasteners.
- Auto Body & Fleet Maintenance: Ideal for setting structural frame, trailer wall, and body panel rivets up to 1/4" in all materials.
- Sheet Metal Fabrication: Excellent for manufacturing operations where spent mandrel collection is essential to keep shop floors free of loose stems.
Common Questions (FAQs)
Q: What material rivets can the APS6400V handle?
A: The tool is rated for up to 1/4" capacity across all common rivet materials, including aluminum, steel, and stainless steel.
Q: Does this model catch the spent rivet stems?
A: Yes. It features an integrated vacuum assist system and a mandrel collection system to automatically catch and hold spent rivet stems.
Q: What is the pulling force and stroke of this riveter?
A: The APS6400V provides 4,200 lbs. of pull force and a 17mm stroke length.
