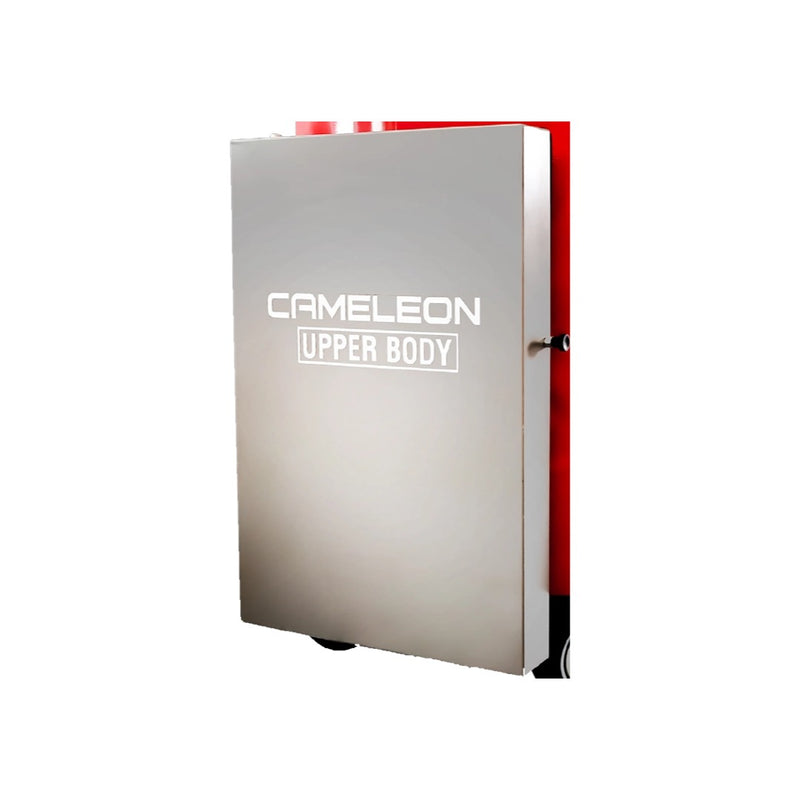

Celette Cameleon Upper Body Fixture Set | CAM04.032
Product Description
The Celette Cameleon Upper Body Fixture Set (SKU: CAM04.032) is a specialized, adaptable tooling add-on designed for the precise measurement, alignment, and repair of a vehicle's upper structural components. As an expansion to the revolutionary Cameleon Universal Jig System, this upper body kit eliminates the need to rent or purchase expensive dedicated jigs for specific vehicle models. By utilizing Celette’s sophisticated online 3D software and OEM data, technicians can instantly configure a highly accurate, custom fixture for virtually any existing or upcoming vehicle platform.
In complex collision repairs involving upper structures such as roof rails, A/B/C pillars, windshield surrounds, and door frames, maintaining exact factory tolerances is critical for safety and panel fitment. The Cameleon system achieves this through an intuitive, modular design that boasts 1 mm adjustability across the X, Y, and Z axes. When combined with Celette benches, crossmembers, and MZ towers, this upper body fixture set provides a rock-solid, OEM-approved solution for diagnostic measuring, structural anchoring, and reconstruction without compromise.
Key Features
-

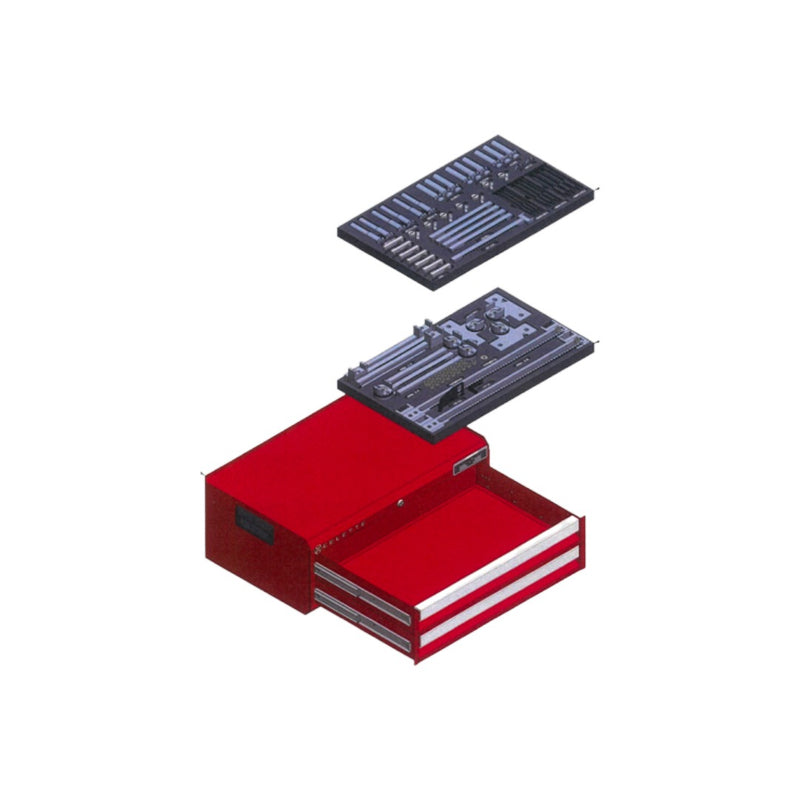

Universal Adaptability: A fully customizable set of modular fixtures that can be configured to hold, measure, and repair upper body components for any make and model.
-
OEM 3D Software Integration: Works seamlessly with Celette's web-based 3D software, allowing technicians to instantly build accurate jigs based on the most up-to-date automotive OEM dimensions globally.
-
High-Precision Modularity: Features precise 1 mm adjustability on the X, Y, and Z axes, ensuring the fixture matches the vehicle's exact factory specifications for length, width, and height.
-
Ecosystem Compatibility: Integrates flawlessly with existing Celette equipment, including standard benches, aluminum crossmembers, MZ towers, and MZ+ pistons.
-
Versatile Repair Modes: Capable of securing critical fixing points (like strut towers, pilot holes, and hinge mounts) both with and without mechanical suspension parts in place.
Ideal For
-
High-End Collision Centers: Performing structural re-construction on luxury and modern vehicles where OEM certification and absolute precision are mandated.
-
Structural Technicians: Executing complex upper body repairs, such as roof replacements or severe side-impact alignments, requiring rigid holding devices during the pulling process.
-
Future-Proofing Body Shops: Transitioning away from the high costs and logistical delays associated with renting dedicated, vehicle-specific fixture sets for every major collision repair.
Common Questions
Q: Does this set include the main Cameleon Premium kit?
A: No, the Upper Body Fixture Set (CAM04.032) is an add-on module. It is designed to be used in conjunction with a base Cameleon setup (such as the Entry, or Premium kits) and standard Celette MZ towers and crossmembers.
Q: How do I know how to build the jig for a specific car?
A: The Cameleon system relies on Celette's online, user-friendly 3D software interface. You simply input the specific vehicle model, and the software provides a step-by-step, intuitive 3D assembly layout that tells the technician exactly which blocks, adapters, and height settings to use to match the OEM data.
Q: Is this system OEM approved?
A: Yes. Celette is renowned globally for its OEM approvals. The Cameleon system, including its upper body fixtures, utilizes exact 3D OEM CAD coordinates to ensure that repairs meet the strict tolerances demanded by manufacturers such as Mercedes-Benz, BMW, Volkswagen, and more.
