Spot Welder Electrical Hook Up Kit | SWE1

Original price $249.00 - Original price $249.00
Original price
$249.00
$249.00 - $249.00
Current price $249.00
Availability:
Only 1 left!
  • Description
  • Device Receptacle
  • Sqaure Box
  • Square Cover

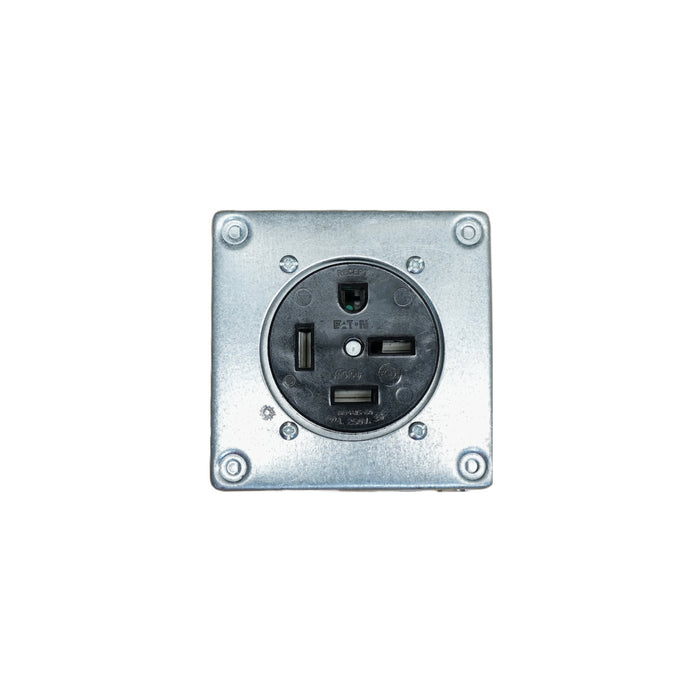

  • Electrical hook up kit (Eaton Arrow Hart Power device receptacle, square box, and square cover) for spot welders like the i4s Smart Spot Welder, i5 Smart Spot Welder, and InvertaSpot GT Automatic 200-220V.

  • Technical Specifications

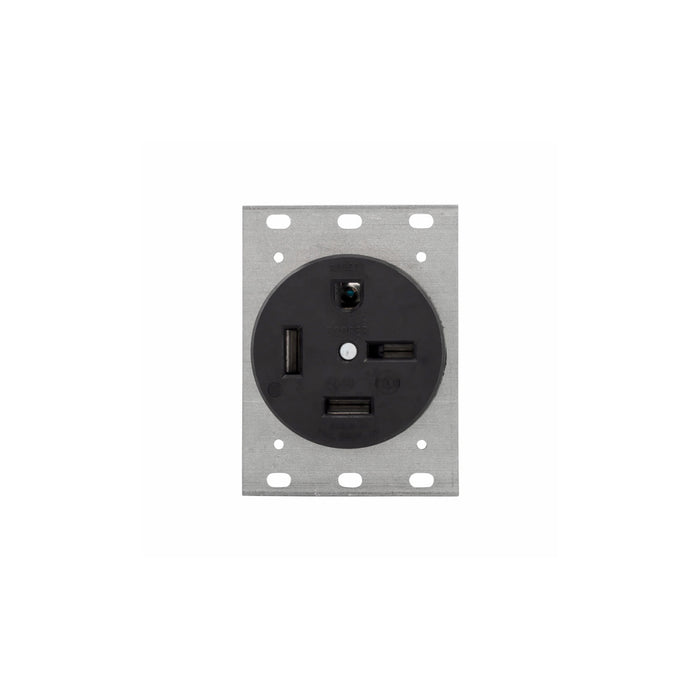

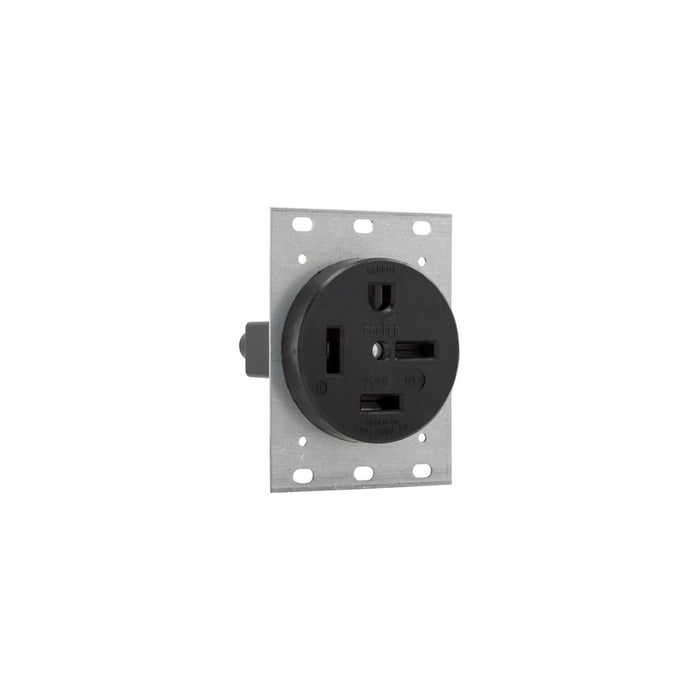

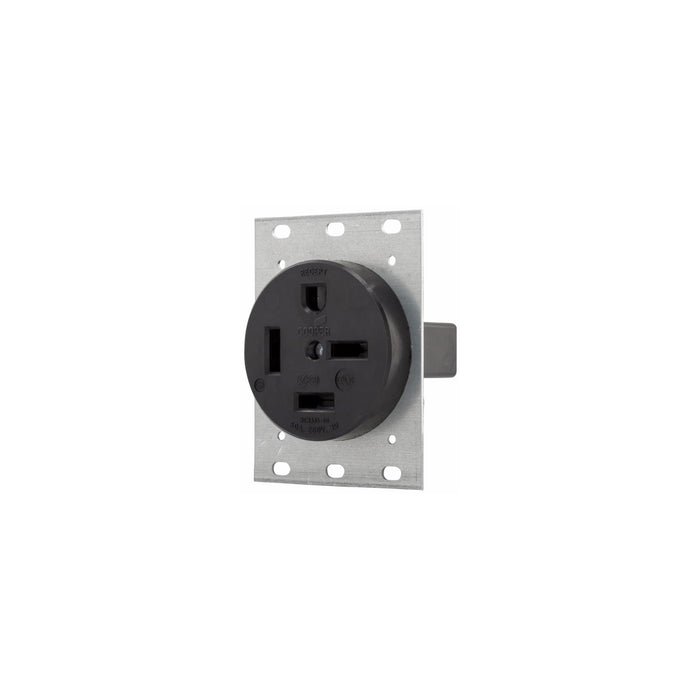

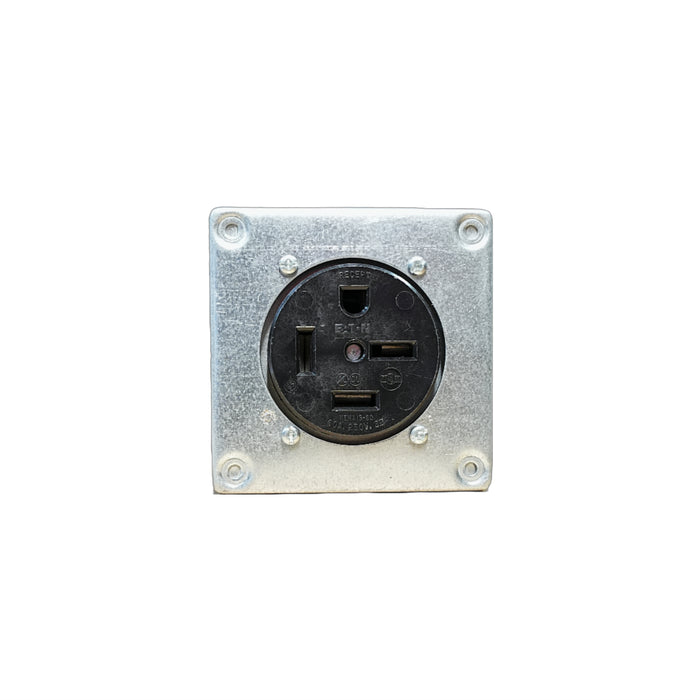

    • Product Name: Eaton power device receptacle
    • Catalog Number: 8460N
    • UPC: 040893018690
    • Product Length/Depth: 3.25 in
    • Product Height: 2.38 in
    • Product Width: 2.94 in
    • Product Weight: .5 lb
    • Compliances: RoHS Compliant
    • Certifications: cULus Listed, CSA Certified, Federal Specification Classification 6233 01
    • Phase: Three-phase
    • Color: Black
    • Wiring method: Back and side
    • Material: Glass filled nylon
    • Mounting method: Flush
    • Allowable wire size: #14-10 AWG
    • Amperage Rating: 60A
    • Number Of Poles: Three-pole
    • NEMA configuration: 15-60R
    • Design type: Receptacle
    • Connection type: Screw
    • Style: Power
    • Number of wires: 4
    • Receptacle type: Three-pole, four-wire, grounding
    • Voltage rating: 250 V
    • Torque rating: 25 lbf-inch
  • Technical Specifications
    • Approval: CSA
    • Knockout Location: (6) Bottom, (16) Sides
    • Number of Knockouts: 22
    • Height in Inch: 4
    • Number of Gangs: 1
    • Depth: 2 1/8 Inches
    • Width in Inch: 4
    • Capacity: 30 CU Inch
    • Knockout Size: (4) 1/2 inch, (2) 3/4 inch, Concentric Knockout Bottom, (10) 1/2 inch, (6) 3/4 inch Concentric Side
    • Mfrcode: T-B
    • Mounting: Screw
    • Additional Information: Knockout (10) 1/2 inch sides, (4) 1/2 inch bottom, (6) 3/4 inch sides, (2) 3/4 inch bottom
    • Product Name Octagonal Box
    • Type: Through wall
    • Package UOM: EA
    • Package Quantity: 40
    • Package Type: PK

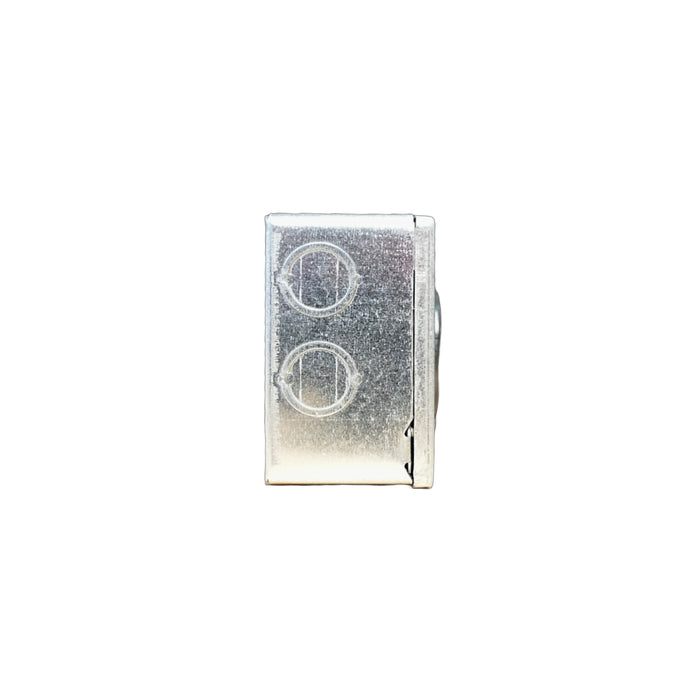

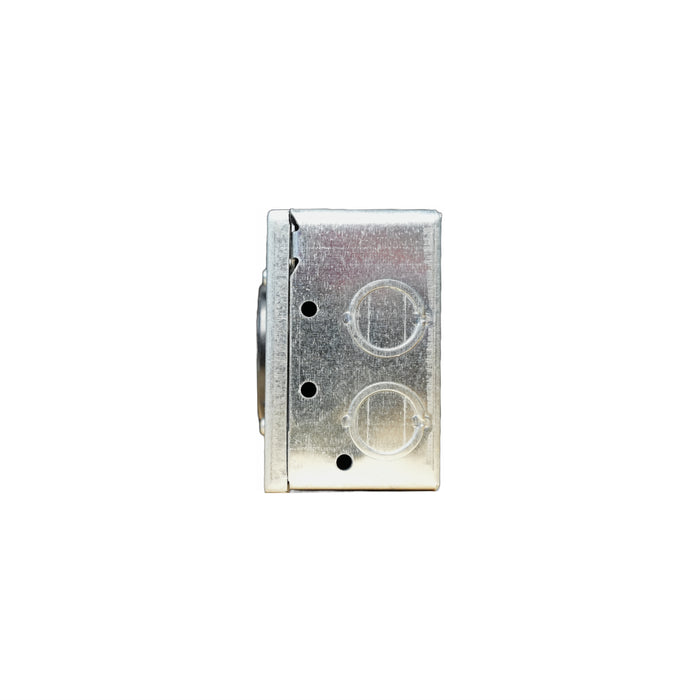

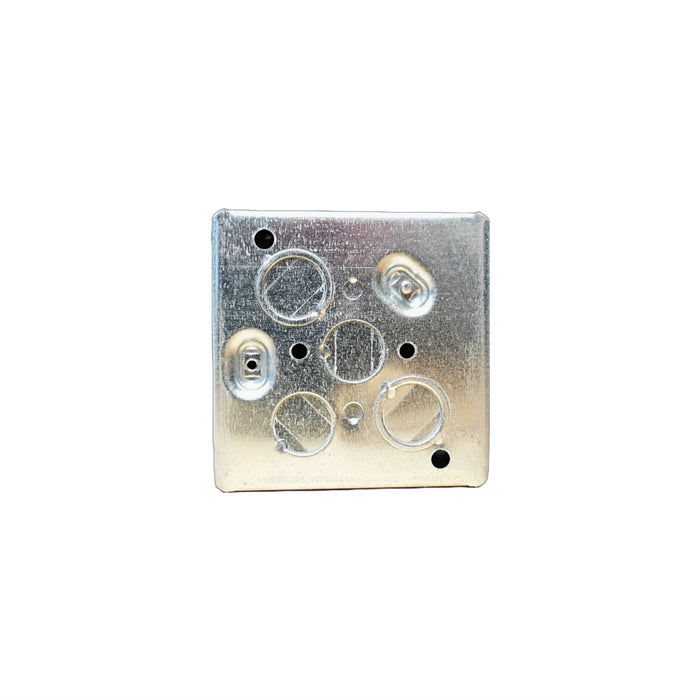

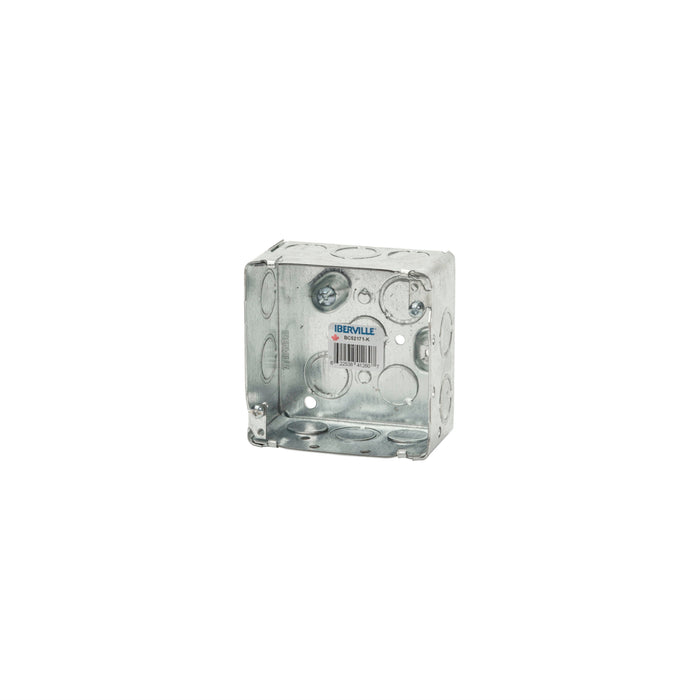

    • Product Name: Square box
    • Mfr Full name: T&B/Commander
    • Mfr UNSPSC: 39121303
    • Catalog Number: BC52171-K

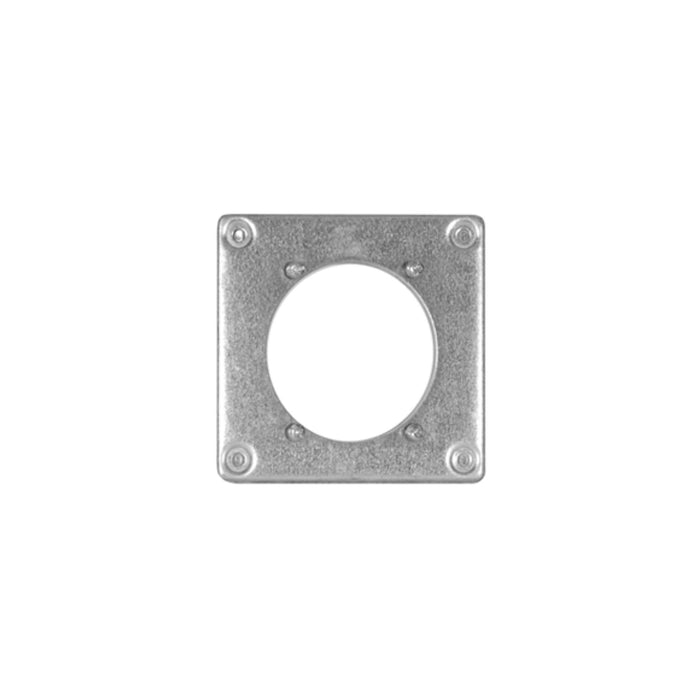

  • 4 inches square box cover. 3/8 inch raised surface (4.6 cubic inches) device mount for 2-5/8 inches single receptacle. Raised device covers are used for mounting switches or receptacles. Self-tapping screws virtually eliminate stripping.
