Product Overview

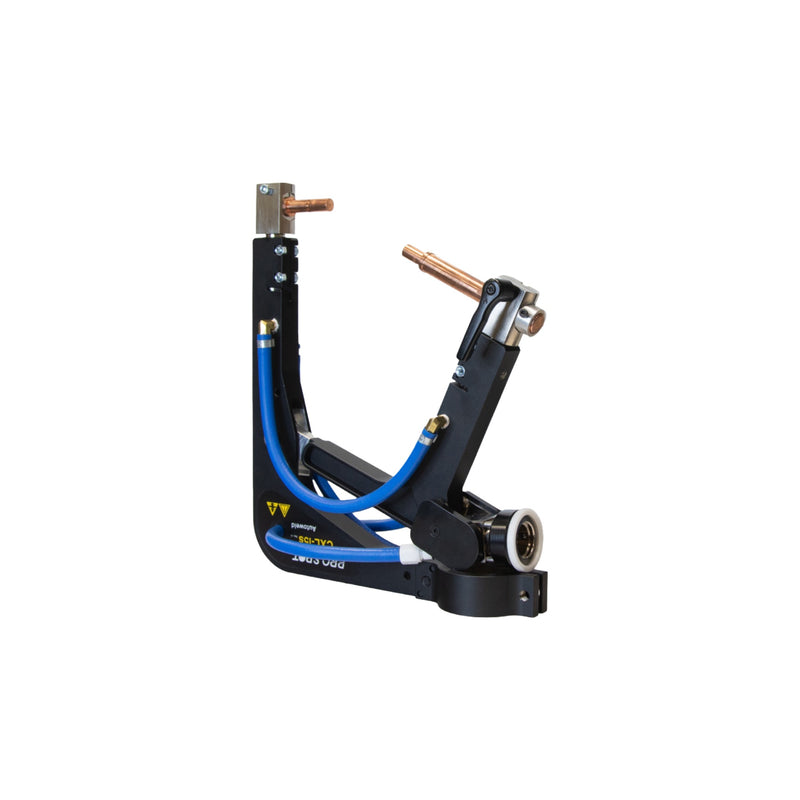

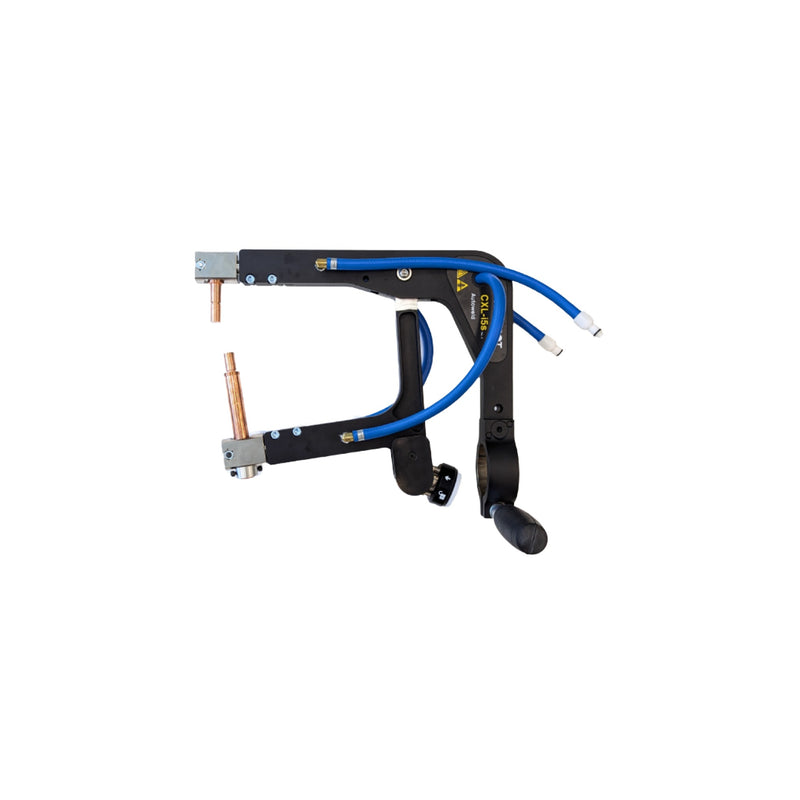

The patented Pro Spot CXL Arm is an advanced welding attachment designed to give resistance spot welders unprecedented versatility and ease of use. It is specifically engineered to provide horizontal weld capability at any height. When paired with the new Ergo Lift Assist, the CXL Arm transforms into a complete High Access Repair System. This combination allows technicians to reach higher and open wider than they can with conventional arms on the market, dramatically improving structural repair efficiency.
Key Features

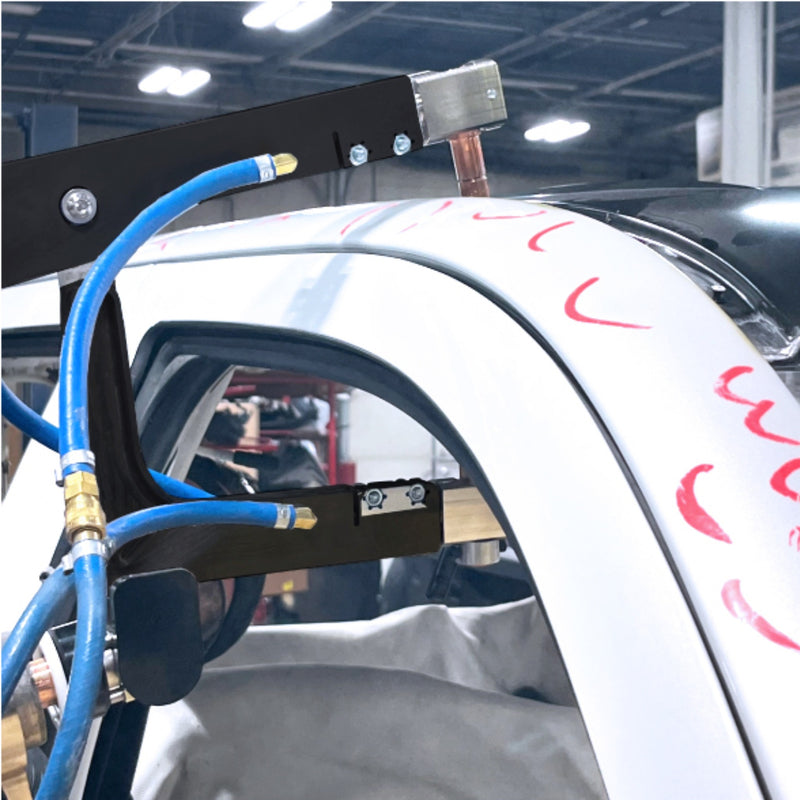

- Enhanced Roof Access: Significantly improves vehicle access, particularly for challenging horizontal welds on roof structures.

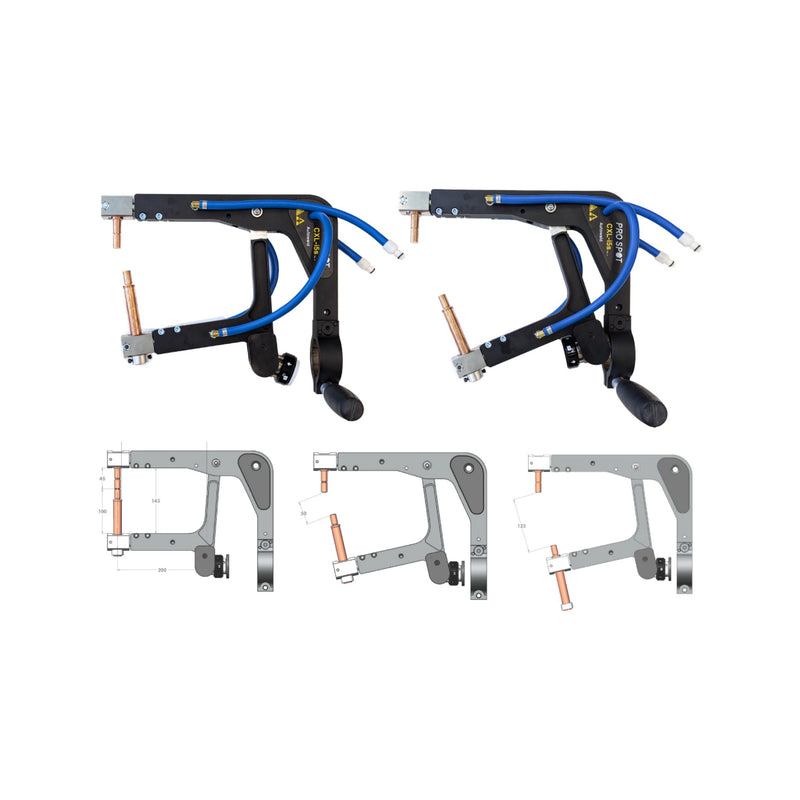

- Retractable Electrode: Features a retractable electrode mechanism that allows for a significantly wider opening.

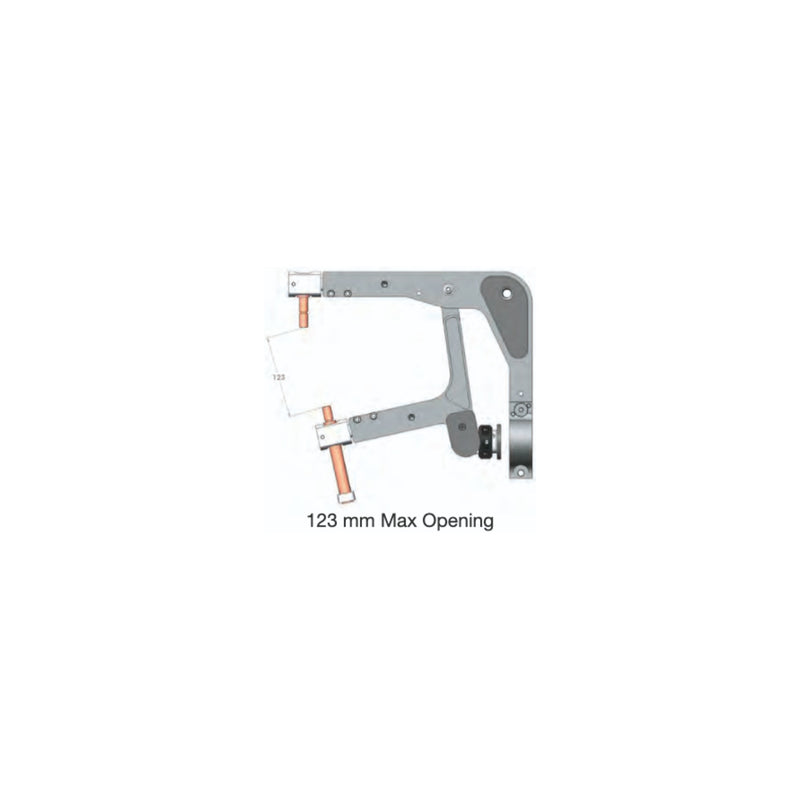

- 123 mm Maximum Clearance: Provides a generous 123 mm maximum opening to clear deep structural flanges.
- Extended Reach: Designed with an increased overall size to provide a longer reach across wide vehicle panels.
- Right Angle Fixtures: Equipped with right angle electrode fixtures to ensure better access in tight or awkwardly shaped geometries.
- Auto Mode Integration: Fully compatible with the welding system's automated processes and can be used directly in Auto Mode.
- Patented US Construction: Features an all-new patented design that is proudly made in the USA.
Technical Specifications
| Property | Specification |
| Brand / Manufacturer |
Pro Spot International, Inc. |
| Product Name |
CXL Arm (Model CXL-i5s, CXL-i5, & i4s) |
| Maximum Electrode Opening |
123 mm |
| Compatible Spot Welders | |
| Weld Capability |
Horizontal at any height |
| Design Status |
Patented |
| Origin |
Made in the USA |
Ideal Use Cases & Applications
-

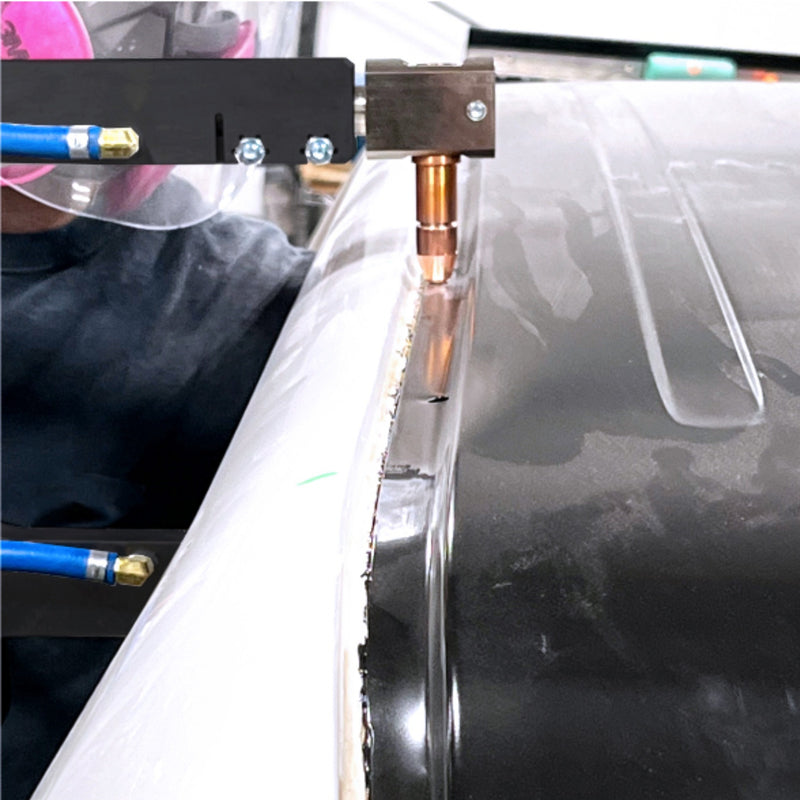

Roof Panel Replacement: Specially engineered to reach higher and execute horizontal spot welds seamlessly across large roof structures.
- High-Reach Repairs: Perfect for heavy-duty collision repairs when paired with the Ergo Lift Assist to create a High Access Repair System.
- Deep Flange Welding: The increased size and 123 mm maximum opening allow technicians to reach deep into structural cavities where standard spot welding arms cannot fit.
Common Questions (FAQs)
Q: Which Pro Spot welding machines is this arm compatible with?

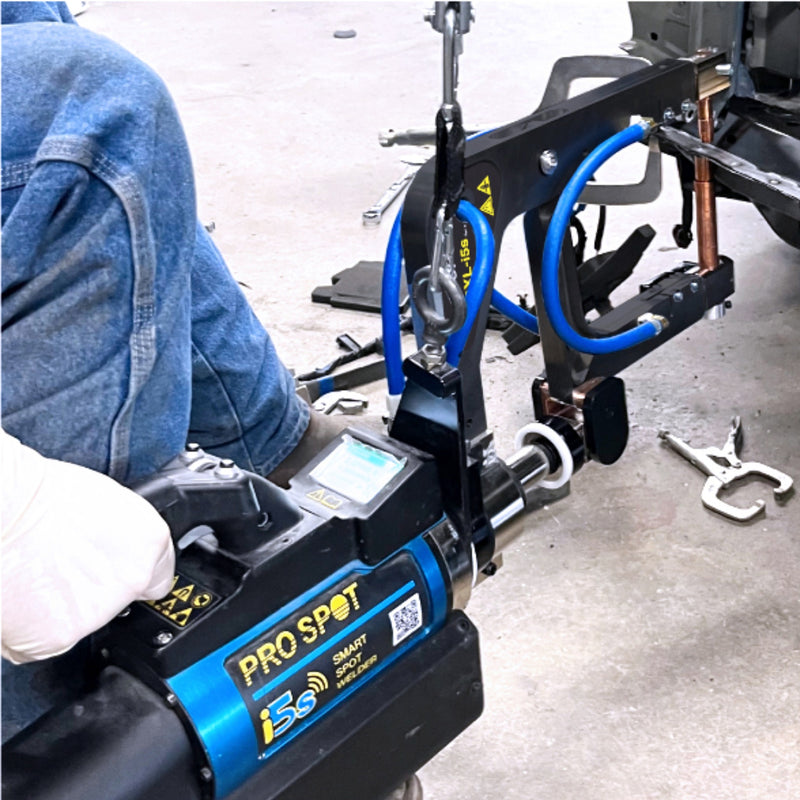

A: The CXL Arm is designed to work seamlessly with Pro Spot i4s, i5, and i5s resistance spot welders.
Q: How wide can the electrodes open on this arm?
A: The arm provides a maximum opening of 123 mm.
Q: Does this arm support automated welding settings?
A: Yes. The CXL Arm can be used in Auto Mode.
